SMC LEHS32K3-8-R56P5D actuator, electric, slider, ELECTRIC ACTUATOR

Part Number: LEHS32K3-8-R56P5D

Series Catalog

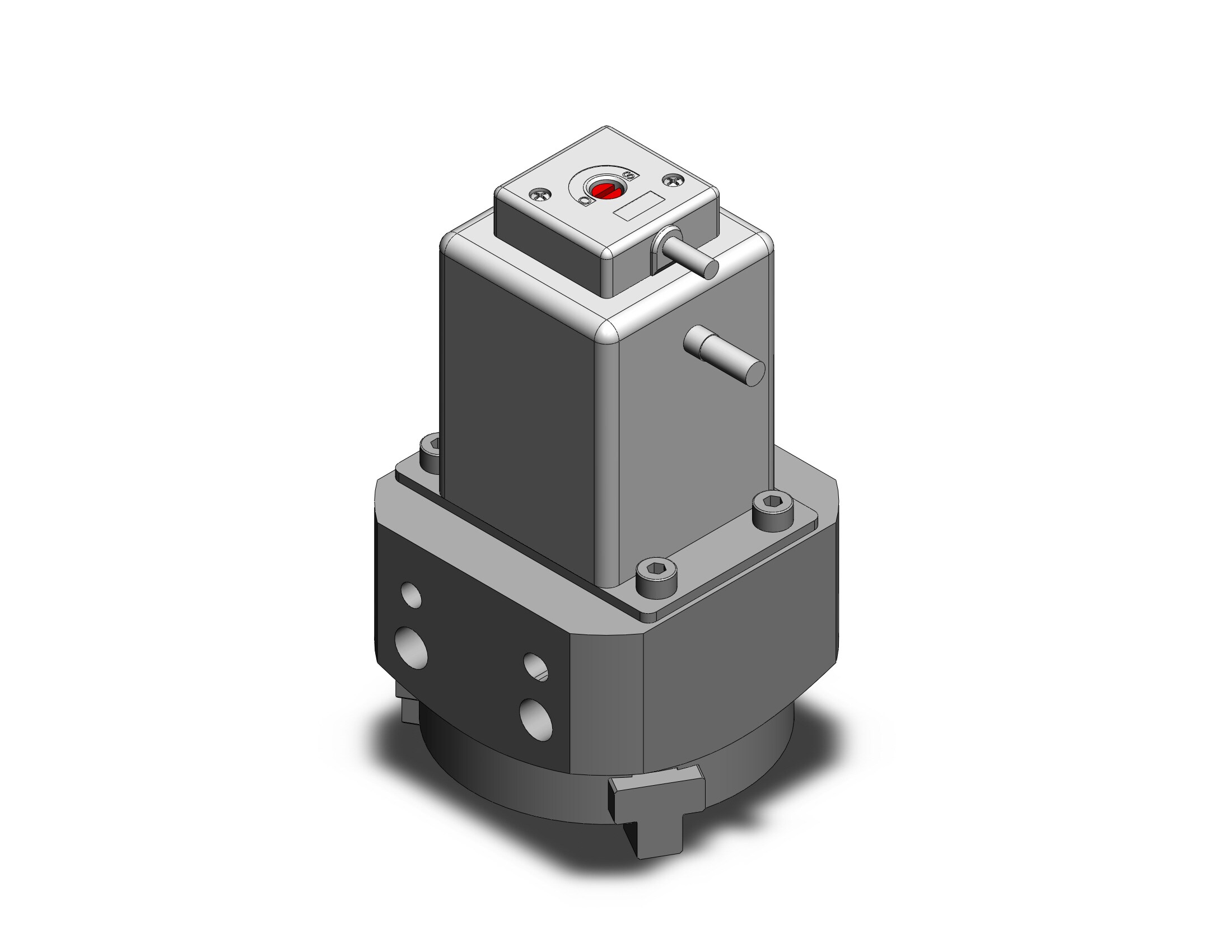

Series image - for reference only
Please pull down this page to review full catalog specifications PDF

Your Price: $1,320.00

Availability:

Available to Ship Today: 0

The item you are trying to purchase is currently out of stock.
Please enter your name, email, and phone number below.
We will contact you as soon as this product is available.

Name: *

Email: *

Phone: *

Verification: *

Type the word above...

Series Catalog

Click Here for Return Policy

ACTUATOR, ELECTRIC, SLIDER

ACTUATOR

ELECTRIC ACTUATOR

32MM LE ELECTRIC ACTUATOR

5.07063 lb

Model

Actuator specifications

Electric specifications

Opening/closing stroke (diameter)

Gripping force [N] Note 1) Note 3)

Opening and closing speed/ Pushing speed [mm/s] Note 2) Note 3)

Drive method

Repeatability [mm] Note 4)

Repeated length measurement accuracy [mm] Note 5)

Finger backlash/dia. [mm] Note 6)

Impact/Vibration resistance [m/s2] Note 7)

Max. operating frequency [C.P.M]

Operating temperature range [C]

Operating humidity range [%RH]

Weight [g]

Motor size

Motor type

Encoder

Rated voltage [V]

Power consumption/ Standby power consumption when operating [W] Note 8)

Max. instantaneous power consumption [W] Note 9)

Basic

Compact

LEHS32

36 to 90

5 to 100/5 to 50

Slide screw + Wedge cam

?0.02

?0.05

0.5 or less

150/30

5 to 40

90 or less (No condensation)

975

Step motor (Servo/24 VDC)

Incremental A/B phase (800 pulse/rotation)

24 VDC ?10%

34/13
