SMC LECPMJS-LEFS25A-100 le actuator, no size rating, ELECTRIC ACTUATOR

Part Number: LECPMJS-LEFS25A-100

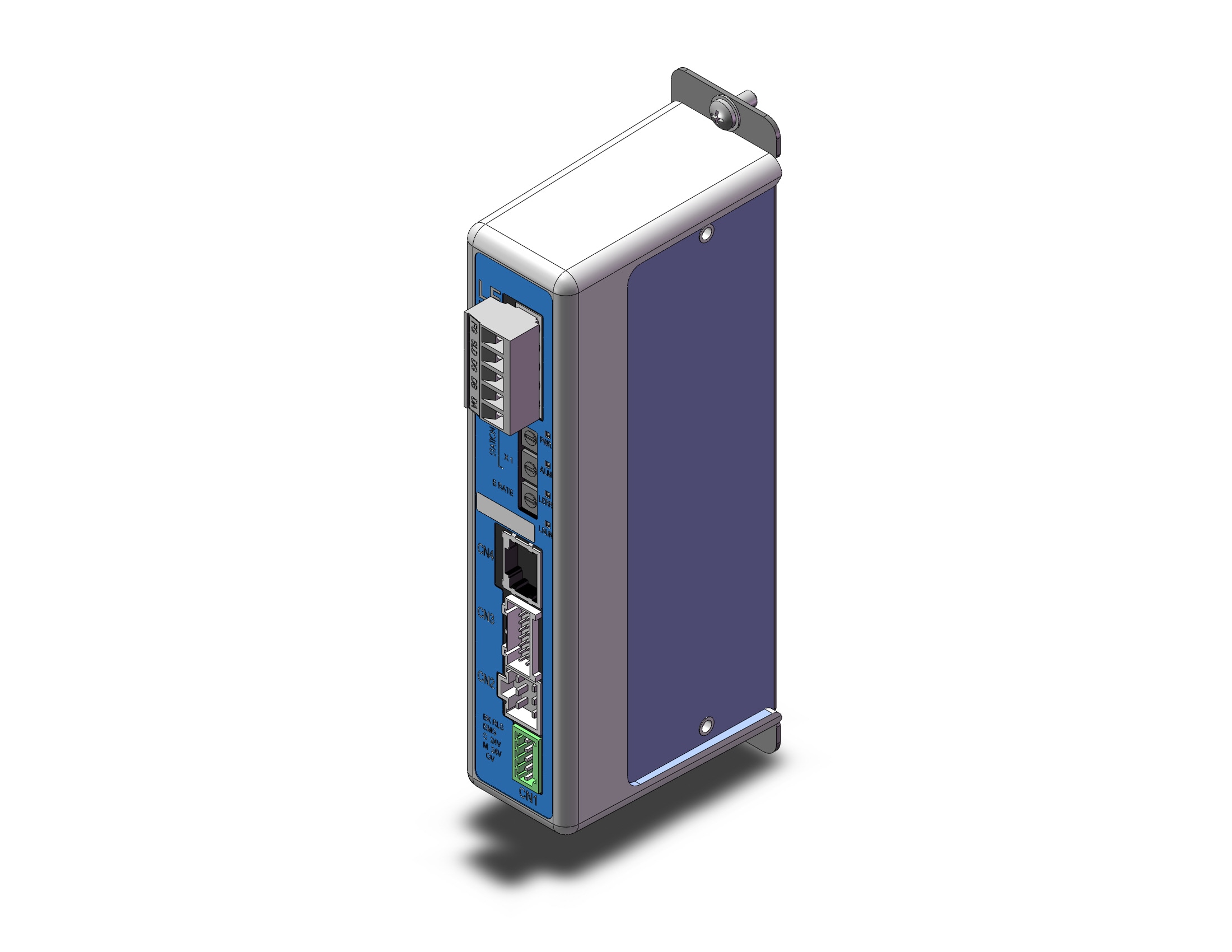

Series image - for reference only
Please pull down this page to review full catalog specifications PDF

Your Price: $456.00

Availability:

Available to Ship Today: 0

Quantity

Click Here for Return Policy

LE ACTUATOR, NO SIZE RATING

ACTUATOR

ELECTRIC ACTUATOR

LE ACTUATOR, NO SIZE RATING

Model

Actuator specifications

Electric specifications

Lock unit specifications

Stroke [mm] Note 1)

Work load [kg] Note 2)

Speed [mm/s] Note 2)

Max. acceleration/deceleration [mm/s2]

Positioning repeatability [mm]

Lead [mm]

Impact/Vibration resistance [m/s2] Note 3)

Actuation type

Guide type

Operating temperature range [nC]

Operating humidity range [%RH]

Motor size

Motor output [W]

Motor type

Encoder

Rated voltage [V]

Power consumption [W] Note 4)

Standby power consumption when operating [W] Note 5)

Max. instantaneous power consumption [W] Note 6)

Type Note 7)

Holding force [N]

Power consumption [W] Note 8)

Horizontal

Vertical

LEFS25A

100, 200, 300400, 500, 600

2.5

12 to 500

3,000

o0.02

50/20

Ball screw

Linear guide

5 to 40

90 or less (No condensation)

;42

Servo motor (24 VDC)

Incremental A/B (800 pulse/rotation)/Z phase

24 VDC o10%

102

Horizontal 4/Vertical 9

113

Non-magnetizing lock

24 VDC o10%
