SMC HEC006-A5A-FN thermo-con, air cooled, HEC THERMO CONTROLLER***

Part Number: HEC006-A5A-FN

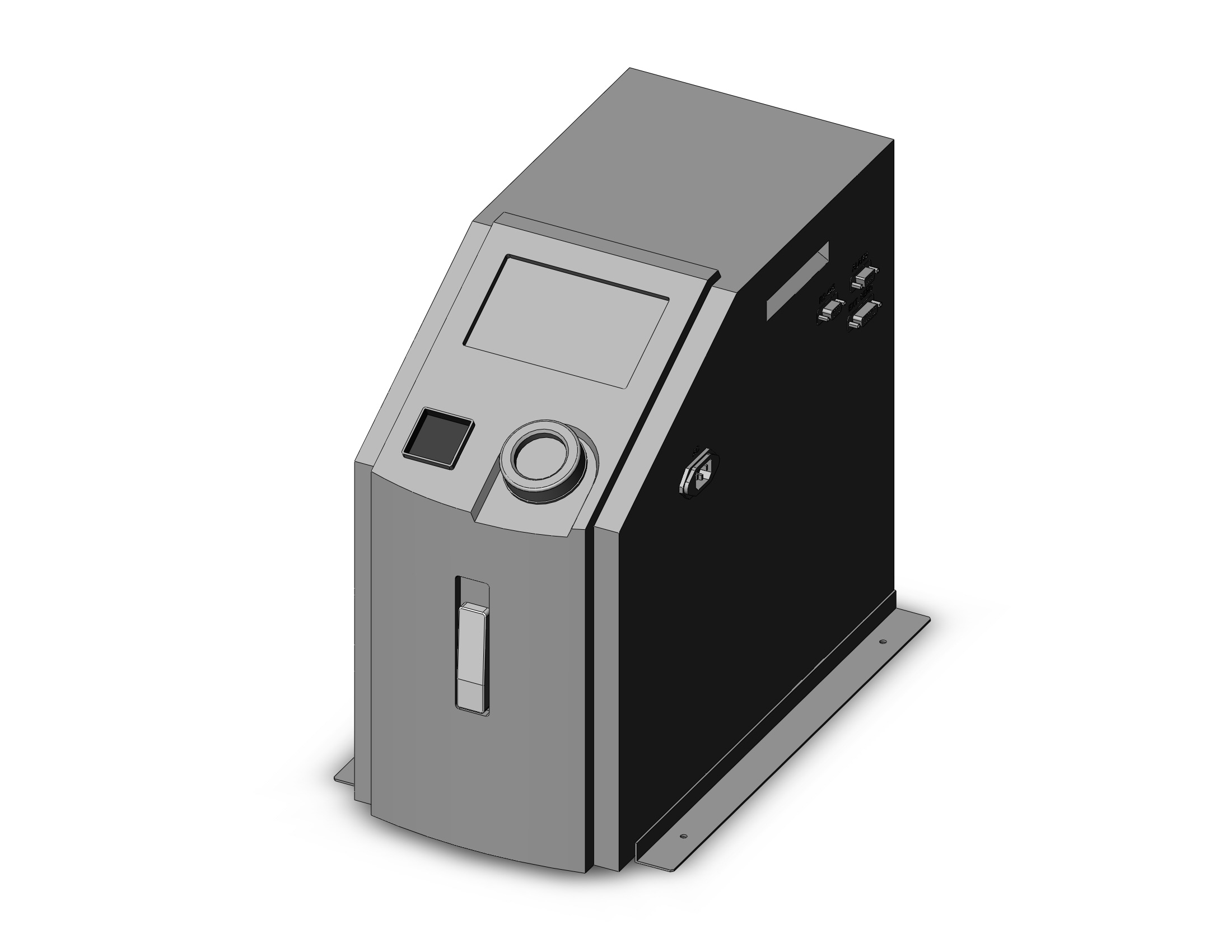

Series image - for reference only
Please pull down this page to review full catalog specifications PDF

Your Price: $10,854.31

Availability:

Available to Ship Today: 0

Quantity

Click Here for Return Policy

HEC OTHER SIZE(MISC./OTHER)

OTHERS

HEC THERMO CONTROLLER

HEC OTHER SIZE(MISC./OTHER)

64.60463 lb

Model

Cooling method

Radiating method

Control method

Ambient temperature/humidity

Circulating fluid system

Electrical system

Weight

Accessories

Safety standards

Circulating fluid

Operating temperature range

Cooling capacity

Heating capacity

Temperature stability Note 3)

Pump capacity

Tank capacity

Port size

Wetted parts material

Power supply

Overcurrent protector

Current consumption

Alarm

Communications

HEC006-A5A

Thermoelectric device (Thermo-module)

Forced air cooling

Cooling/Heating automatic shift PID control

50 to 95F (10 to 35C), 35 to 80%RH (no condensation)

Clear water

50 to 140F (10 to 60 C) (no condensation)

600 W Note 2)

900 W Note 2)

?0.018 to ?0.054F (?0.01 to ?0.03C)

Refer to performance chart.

Approx. 0.32 gal (1.2 L)

Rc3/8

Rc1/4 (with plug)

Stainless steel 303, Stainless steel 304, EPDM, Ceramics, PPS glass 30%, Carbon, PE, Polyurethane

Single-phase 100 to 240 VAC ?10%, 50/60 Hz

15 A

10 A (100 VAC) to 4 A (240 VAC)

Refer to alarm function.

RS-485

Approx. 60.6 lbs (27.5 kg) (including foot for fixing)

Power cable, Foot for fixing

CE marking, UL (NRTL) standards
