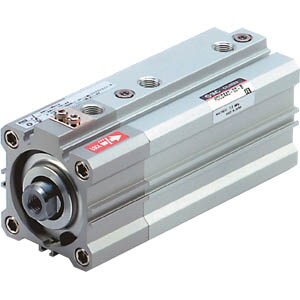

R(D)LQ Compact Cylinder with Air Cushion and Lock

Series RLQ is a compact cylinder with a built-in lock and air cushion.  Should the air supply be cut off, the RLQ was designed by SMC to provide the safety of drop prevention at any point of the stroke.  Additional features include standardized bypass piping, and a home position holding function.  The RLQ is the perfect solution for applications which require larger kinetic energy, high stroke repeatability and decreased sound levels.  Series RLQ is currently available in bore sizes of 32, 40, 50 and 63mm, with standard stroke options between 20 – 100mm.

• Large allowable kinetic energy
• Noise reduction (27% noise reduction compared to CQ2 without cushion)
• Good stroke repeatability (Metal to metal at stroke end)
• Manual override mechanism allows unlocking with simple tools
• Bypass piping type is available for applications requiring drop prevention

Configuration Options

Select Product Options

	Select values from the drop down lists or make appropriate selections to configure the part number.
Magnet	-- Pick an Option -- None D (Built-in)
Mounting	-- Pick an Option -- A (Both Ends Tapped) B [Through Hole (Standard)] D (Double Clevis) F (Front Flange) G (Rear Flange) L (Foot)
Bore Size	-- Pick an Option -- 32mm 40mm 50mm 63mm
Port Thread Type	-- Pick an Option -- Rc TN (NPT) TF (G)
Stroke	-- Pick an Option -- 20mm 25mm 30mm 40mm 50mm 75mm 100mm
Body Option	-- Pick an Option -- Rod End Female Threads, Standard M (Rod End Male Threads)
Locking Direction	-- Pick an Option -- F (Extension Locking) B (Retraction Locking)
By-Pass Piping	-- Pick an Option -- None (Emergency Stop) R (w/By-Pass, Right-Hand Piping, Drop Prevention) L (w/By-Pass, Left-Hand Piping, Drop Prevention)
Auto Switch	-- Pick an Option -- No Switch M9B--Solid State, Gen. Purpose, 2 Wire, Horizontal M9BA--Solid State, Water Resist., 2 Wire, Horizontal M9BAV--Solid State, Water Resist., 2 Wire, Vertical M9BV--Solid State, Gen. Purpose, 2 Wire, Vertical M9BW--Solid State, 2-color Indication, 2 Wire, Horizontal M9BWV--Solid State, 2-color Indication, 2 Wire, Vertical M9N--Solid State, Gen. Purpose, 3 Wire NPN, Horizontal M9NA--Solid State, Water Resist., 3 Wire NPN, Horizontal M9NAV--Solid State, Water Resist., 3 Wire NPN, Vertical M9NV--Solid State, Gen. Purpose, 3 Wire NPN, Vertical M9NW--Solid State, 2-color Indication, 3 Wire NPN, Horizontal M9NWV--Solid State, 2-color Indication, 3 Wire NPN, Vertical M9P--Solid State, Gen. Purpose, 3 Wire PNP, Horizontal M9PA--Solid State, Water Resist., 3 Wire PNP, Horizontal M9PAV--Solid State, Water Resist., 3 Wire PNP, Vertical M9PV--Solid State, Gen. Purpose, 3 Wire PNP, Vertical M9PW--Solid State, 2-color Indication, 3 Wire PNP, Horizontal M9PWV--Solid State, 2-color Indication, 3 Wire PNP, Vertical A72--Reed, AC Volt.<200, LED, Vertical A72H--Reed, AC Volt.<200, LED, Horizontal A73--Reed, DC Volt.>5,<24, AC Volt.<100, LED, Vertical A73C--Reed, DC Volt.>5,<24, LED, Connector, Vertical A73H--Reed, DC Volt.>5,<24, AC Volt.<100, LED, Horizontal A76H--Reed, DC Volt.<5, LED, Horizontal A79W--Reed, DC Volt, 2-color Indication, Horizontal A80--Reed, DC Volt.>5,<24, AC Volt.<100, Vertical A80C--Reed, DC Volt.>5,<24, Connector, Vertical A80H--Reed, DC Volt.>5,<24, AC Volt.<100, Horizontal A90--Reed, AC Volt, Horizontal A90V--Reed, DC Volt, AC Volt, Vertical A93--Reed, DC Volt, AC Volt, LED, Horizontal A93V--Reed, DC Volt, AC Volt, LED, Vertical A96--Reed, DC Volt, LED, Horizontal A96V--Reed, DC Volt, LED, Vertical F79--Solid State, Gen. Purpose, 3 Wire NPN, Horizontal F79F--Solid State, Diagnostic, 4 Wire NPN, Horizontal F79W--Solid State, 2-color Indication, 3 Wire NPN, Horizontal F7BA--Solid State, Water Resist., 2 Wire, Horizontal F7BAV--Solid State, Water Resist., 2 Wire, Vertical F7BV--Solid State, Gen. Purpose, 2 Wire, Vertical F7BWV--Solid State, 2-color Indication, 2 Wire PNP, Vertical F7NT--Solid State, With Timer, 3 Wire NPN, Horizontal F7NV--Solid State, Gen. Purpose, 3 Wire NPN, Vertical F7NWV--Solid State, 2-color Indication, 3 Wire NPN, Vertical F7P--Solid State, Gen. Purpose, 3 Wire PNP, Horizontal F7PV--Solid State, Gen. Purpose, 3 Wire PNP, Vertical F7PW--Solid State, 2-color Indication, 3 Wire PNP, Horizontal J79--Solid State, Gen. Purpose, 2 Wire, Horizontal J79C--Solid State, Gen. Purpose, 2 Wire, Connector, Vertical J79W--Solid State, 2-color Indication, 2 Wire, Horizontal
Lead Wire or Prewired Connector	-- Pick an Option -- 0.5m (Or None in the Case of No Switch) N (No Lead Wire) M (1m) L (3m) Z (5m) SAPC (0.5m Cord Length, M8-3 Pin Connector) SBPC (0.5m Cord Length, M8-4 Pin Connector) SDPC (0.5m Cord Length, M12-4 Pin Connector) MAPC (1.0m Cord Length, M8-3 Pin Connector) MBPC (1.0m Cord Length, M8-4 Pin Connector) MDPC (1.0m Cord Length, M12-4 Pin Connector) LAPC (3.0m Cord Length, M8-3 Pin Connector) LDPC (3.0m Cord Length, M12-4 Pin Connector) SC (0.3m Cord Length, M12-4 Pin Connector, 3 & 4 Out) SE (0.3m Cord Length, M12-4 Pin Connector, 1 & 4 Out)
Number	-- Pick an Option -- 2 pcs. (Or None in the Case of No Switch) 3 pcs. 4 pcs. S (1 pc.)
	Options in: Gray are not compatible with other selected option value. Red conflict with another selected option value. Amber are not recommended.
