C(D)LQ, Compact Cylinder, Double Acting, Single Rod, With Lock

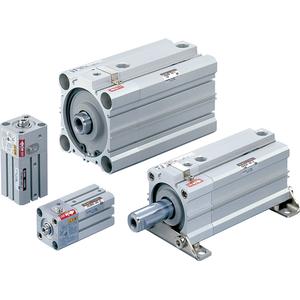

Compact cylinder series CLQ offers drop prevention when the pressure of air source is decreased or the residual pressure is released. The CLQ has a low profile design, with a compact lock unit.  Available in 8 bore sizes ranging from 20 to 100mm, and is auto switch capable.

• Low profile with compact lock unit
• Two types of mounting
• Locking is possible at any position within the entire stroke
• Locking direction is selectable
• Easy manual unlocking

Configuration Options

Select Product Options

	Select values from the drop down lists or make appropriate selections to configure the part number.
Magnet	-- Pick an Option -- None D (Built-in)
Mounting	-- Pick an Option -- A (Both Ends Tapped) B (Through Hole) D (Double Clevis) F (Front Flange) G (Rear Flange) L (Foot)
Bore Size	-- Pick an Option -- 20mm 25mm 32mm 40mm 50mm 63mm 80mm 100mm
Thread	-- Pick an Option -- M5x0.8 (20-25 Bore); Rc (32-100 Bore) TN (NPT) TF (G)
Stroke	-- Pick an Option -- 5mm 10mm 15mm 20mm 25mm 30mm 35mm 40mm 45mm 50mm 75mm 100mm
Body Option	-- Pick an Option -- Standard C (Rubber Bumper) CM (Rubber Bumper, Rod End Male Thread) M (Rod End Male Thread)
Locking Direction	-- Pick an Option -- B (Retracting Stroke Lock) F (Forwarding Stroke Lock)
Auto Switch	-- Pick an Option -- No Switch M9B--Solid State, Gen. Purpose, 2 Wire, Horizontal, 0.5M M9BA--Solid State, Water Resist., 2 Wire, Horizontal M9BAV--Solid State, Water Resist., 2 Wire, Vertical M9BV--Solid State, Gen. Purpose, 2 Wire, Vertical, 0.5M M9BW--Solid State, 2-color Indication, 2 Wire, Horizontal M9BWV--Solid State, 2-color Indication, 2 Wire, Vertical M9N--Solid State, Gen. Purpose, 3 Wire NPN, Horizontal, 0.5M M9NA--Solid State, Water Resist., 3 Wire NPN, Horizontal M9NAV--Solid State, Water Resist., 3 Wire NPN, Vertical M9NV--Solid State, Gen. Purpose, 3 Wire NPN, Vertical, 0.5M M9NW--Solid State, 2-color Indication, 3 Wire NPN, Horizontal M9NWV--Solid State, 2-color Indication, 3 Wire NPN, Vertical M9P--Solid State, Gen. Purpose, 3 Wire PNP, Horizontal, 0.5M M9PA--Solid State, Water Resist., 3 Wire PNP, Horizontal M9PAV--Solid State, Water Resist., 3 Wire PNP, Vertical M9PV--Solid State, Gen. Purpose, 3 Wire PNP, Vertical, 0.5M M9PW--Solid State, 2-color Indication, 3 Wire PNP, Horizontal M9PWV--Solid State, 2-color Indication, 3 Wire PNP, Vertical A90--Reed, AC Volt, Horizontal, 0.5M A90V--Reed, DC Volt, AC Volt, Vertical, 0.5M A93--Reed, DC Volt, AC Volt, LED, Horizontal, 0.5M A93V--Reed, DC Volt, AC Volt, LED, Vertical, 0.5M A96--Reed, DC Volt, LED, Horizontal, 0.5M A96V--Reed, DC Volt, LED, Vertical, 0.5M A72--Reed, AC Volt.<200, LED, Lead Wire, Vertical, 0.5M A72H--Reed, AC Volt.<200, LED, Lead Wire, Horizontal, 0.5M A73C--Reed, DC Volt.>5,<24, LED, Connector, Vertical, 0.5M A79W--Reed, DC Volt, 2-color Indication, Horizontal, 0.5M A80C--Reed, DC Volt.>5,<24, Connector, Vertical, 0.5M F79F--Solid State, Diagnostic, 4 Wire NPN, Lead Wire, Horizontal, 0.5M J79C--Solid State, Gen. Purpose, 2 Wire, Connector, Vertical, 0.5M A73--Reed, DC Volt.>5,<24, AC Volt.<100, LED, Vertical A73H--Reed, DC Volt.>5,<24, AC Volt.<100, LED, Horizontal A76H--Reed, DC Volt.<5, LED, Horizontal A80--Reed, DC Volt.>5,<24, AC Volt.<100, Vertical A80H--Reed, DC Volt.>5,<24, AC Volt.<100, Horizontal F7BA--Solid State, Water Resist., 2 Wire, Horizontal F7BAV--Solid State, Water Resist., 2 Wire, Vertical F7BV--Solid State, Gen. Purpose, 2 Wire, Vertical F7BWV--Solid State, 2-color Indication, 2 Wire PNP, Vertical F7NT--Solid State, With Timer, 3 Wire NPN, Horizontal F7NV--Solid State, Gen. Purpose, 3 Wire NPN, Vertical F7NWV--Solid State, 2-color Indication, 3 Wire NPN, Vertical F7P--Solid State, Gen. Purpose, 3 Wire PNP, Horizontal F7PV--Solid State, Gen. Purpose, 3 Wire PNP, Vertical F7PW--Solid State, 2-color Indication, 3 Wire PNP, Horizontal F79--Solid State, Gen. Purpose, 3 Wire NPN, Horizontal F79W--Solid State, 2-color Indication, 3 Wire NPN, Horizontal J79--Solid State, Gen. Purpose, 2 Wire, Horizontal J79W--Solid State, 2-color Indication, 2 Wire, Horizontal P4DW--Solid State, 2-color Indication, Magnetic Field Resist., 2 Wire P5DW--Solid State, 2-color Indication, Magnetic Resist., 2 Wire
Lead Wire or Prewired Connector	-- Pick an Option -- 0.5m (Or None in the Case of No Switch) M (1 m) N (No Lead Wire) L (3m) Z (5m) SAPC (0.5m Cord Length, M8-3 Pin Connector) SBPC (0.5m Cord Length, M8-4 Pin Connector) SDPC (0.5m Cord Length, M12-4 Pin Connector) MAPC (1.0m Cord Length, M8-3 Pin Connector) MBPC (1.0m Cord Length, M8-4 Pin Connector) MDPC (1.0m Cord Length, M12-4 Pin Connector) LDPC (3.0m Cord Length, M12-4 Pin Connector)
Number	-- Pick an Option -- 2 pcs. (Or None in the Case of No Switch) S (1 pc.) 3 pcs. 4 pcs.
