NCG, Accessory, Mounting Brackets

The NCG provides precision mounting, short overall length, and high speed. Rubber bumpers are standard and an optional adjustable air cushion is available. Nine mounting styles include basic body, foot, single clevis, front or rear flange, front or rear trunnion, nose mount, and double clevis. Bore sizes range from 3/4" to 2 1/2" and standard stroke lengths from 1" to 12". The NCG series is auto-switch capable. Non-rotating and double rod are standard options.

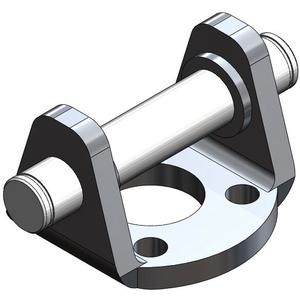

• NCG mounting brackets
• Type: flange, foot, trunnion, single and double clevis
• Applicable to all bore sizes

Configuration Options

Select Product Options

	Select values from the drop down lists or make appropriate selections to configure the part number.
Prefix	-- Pick an Option -- NCG CG (Selection for "T" Mount 25 & 32mm Bore)
Mounting	-- Pick an Option -- C (Single Clevis) D (Double Clevis) F (Flange) L (Foot, Requires 2 Per Cylinder) T (Trunnion)
Applicable Bore	-- Pick an Option -- 020 (3/4") 025 (1") 032 (1 1/4") 040 (1 1/2") 050 (2") 063 (2 1/2")
	Options in: Gray are not compatible with other selected option value. Red conflict with another selected option value. Amber are not recommended.
