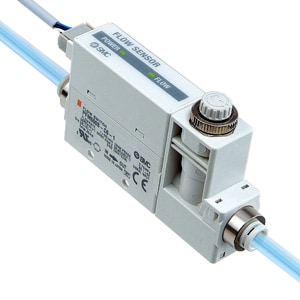

PFM5, 2-Color Display, Digital Flow Switch, Remote Sensor Unit

SMC's PFM dual color digital flow switch was developed initially to detect microchip component adsorption in vacuum, and early clogging in both filter and nozzle applications. The series is incredibly compact and lightweight compared to existing flow sensors. The PFM is available in four maximum flow rate options 10, 25, 50 and 100 ?/min, and is suitable for use with air, nitrogen, argon or carbon dioxide.

• 2-color display flow switch.
• Sensor and monitor separation, which allows remote monitors' centralization.
• Integrated flow adjustment valve as an option, reducing piping and saving space (unique feature in the market).
• Operation indication also on the sensor.
• Fast response: either 50 ms, 0.5s, 1, or 2s can be chosen.
• Easy connection and removal of wiring.

Configuration Options

Select Product Options

	Select values from the drop down lists or make appropriate selections to configure the part number.
Flow Rate Range	-- Pick an Option -- 10 [0.2 to 10 (5 for CO2) ℓ/min] 25 [0.5 to 25 (12.5 for CO2) ℓ/min] 50 [1 to 50 (25 for CO2) ℓ/min] 11 [2 to 100 (50 for CO2) ℓ/min]
Flow Adjustment Valve	-- Pick an Option -- None S (Yes)
Port Size	-- Pick an Option -- 01 (Rc1/8) 02 (Rc1/4) N01 (NPT1/8) N02 (NPT1/4) F01 (G1/8) F02 (G1/4) C4 [ø4 (5/32") One-touch Fitting] C6 (ø6 One-touch Fitting) C8 (ø8 (5/16") one-touch fitting) N7 (ø1/4 One-touch Fitting)
Piping Entry Direction	-- Pick an Option -- Straight L (Bottom)
Output Specification	-- Pick an Option -- 1 [Analog Output (1 to 5 V)] 2 [Analog Output (4 to 20 mA)]
Instruction Manual	-- Pick an Option -- With Instruction Manual N (None)
Calibration Certificate	-- Pick an Option -- None A (w/Calibration Certificate)
Connector	-- Pick an Option -- Lead Wire w/Connector (2 m) W [Lead Wire w/Connector (2m) + Rubber Cover] Z (w/o Lead Wire w/Connector)
Option	-- Pick an Option -- None R (Bracket for w/o Flow Adjustment Valve) S (Bracket for w/Flow Adjustment Valve) T (Panel Mount Adapter for w/o Flow Adjustment Valve) V (Panel Mount Adapter for w/Flow Adjustment Valve)
	Options in: Gray are not compatible with other selected option value. Red conflict with another selected option value. Amber are not recommended.
