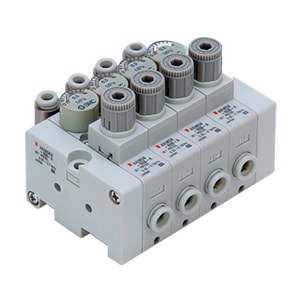

ARM5A, Compact Manifold Regulator, Centralized Supply Type

Regulator manifold series ARM is available in standard size 1000 & 2000 and the modular style is available in sizes 2500 & 3000. Standard models are available with 4 connection methods and have backflow function availability. Modular styles can be freely mounted on a manifold station and have easy set up using the new handle.

• Compact regulator with 14mm mounting pitch.
• Mount pressure gauge (ø14mm).
• Allow to select one-touch fitting.
• Adopt backflow function as standard.
• DIN rail mounting.

Configuration Options

Select Product Options

	Select values from the drop down lists or make appropriate selections to configure the part number.
Manifold Mounting	-- Pick an Option -- A (Direct Mount) B (DIN Rail Mount)
Centralized Supply (IN) Piping Position	-- Pick an Option -- 1 (Bottom) 2 (Top)
Regulator Block Stations	-- Pick an Option -- 1 Station 2 Stations 3 Stations 4 Stations 5 Stations 6 Stations 7 Stations 8 Stations 9 Stations M (10 Stations)
IN/OUT Fitting Type	-- Pick an Option -- 07 [IN/ø6 (Straight) - OUT/ø4 (Straight)] 08 [IN/ø6 (Straight) - OUT/ø6 (Straight)] 09 [IN/ø8 (Straight) - OUT/ø4 (Straight)] 10 [IN/ø8 (Straight) - OUT/ø6 (Straight)] 19 [IN/ø6 (Elbow) - OUT/ø4 (Elbow)] 20 [IN/ø6 (Elbow) - OUT/ø6 (Elbow)] 21 [IN/ø8 (Elbow) - OUT/ø4 (Elbow)] 22 [IN/ø8 (Elbow) - OUT/ø6 (Elbow)] 26 [IN/ø6 (Straight) - OUT/ø4 (Elbow)] 27 [IN/ø6 (Straight) - OUT/ø6 (Elbow)] 28 [IN/ø8 (Straight) - OUT/ø4 (Elbow)] 29 [IN/ø8 (Straight) - OUT/ø6 (Elbow)] 33 [IN/ø6 (Elbow) - OUT/ø4 (Straight)] 34 [IN/ø6 (Elbow) - OUT/ø6 (Straight)] 35 [IN/ø8 (Elbow) - OUT/ø4 (Straight)] 36 [IN/ø8 (Elbow) - OUT/ø6 (Straight)] 57 [IN/ø1/4 (Straight) - OUT/ø5/32 (Straight)] 58 [IN/ø1/4 (Straight) - OUT/ø1/4 (Straight)] 59 [IN/ø5/16 (Straight) - OUT/ø5/32 (Straight)] 60 [IN/ø5/16 (Straight) - OUT/ø1/4 (Straight)] 69 [IN/ø1/4 (Elbow) - OUT/ø5/32 (Elbow)] 70 [IN/ø1/4 (Elbow) - OUT/ø1/4 (Elbow)] 71 [IN/ø5/16 (Elbow) - OUT/ø5/32 (Elbow)] 72 [IN/ø5/16 (Elbow) - OUT/ø1/4 (Elbow)] 76 [IN/ø1/4 (Straight) - OUT/ø5/32 (Elbow)] 77 [IN/ø1/4 (Straight) - OUT/ø1/4 (Elbow)] 78 [IN/ø5/16 (Straight) - OUT/ø5/32 (Elbow)] 79 [IN/ø5/16 (Straight) - OUT/ø1/4 (Elbow)] 83 [IN/ø1/4 (Elbow) - OUT/ø5/32 (Straight)] 84 [IN/ø1/4 (Elbow) - OUT/ø1/4 (Straight)] 85 [IN/ø5/16 (Elbow) - OUT/ø5/32 (Straight)] 86 [IN/ø5/16 (Elbow) - OUT/ø1/4 (Straight)]
Accessories	-- Pick an Option -- A (w/Pressure Gauge/L Side) B (w/Pressure Gauge/R Side) C (w/Pressure Gauge/B Side) D (w/o Pressure Gauge/L Side) E (w/o Pressure Gauge/R Side) F (w/o Pressure Gauge/B Side)
Options	-- Pick an Option -- None 1 (0.35 MPa Setting) 2 (Non-Relieving) 3 (0.35 MPa Setting and Non-Relieving)
Unit Representation	-- Pick an Option -- Display Unit for Product Name Plate and Pressure Gauge: MPa Z (Display Unit for Product Name Plate and Pressure Gauge: PSI)
	Options in: Gray are not compatible with other selected option value. Red conflict with another selected option value. Amber are not recommended.
