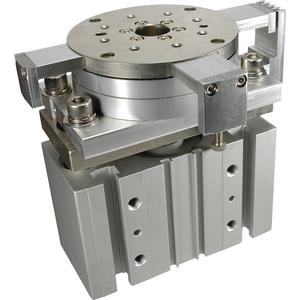

MGT, Cylinder with Turn Table

The MGT series is a combination of a manual turntable and a flat cylinder with guide. High precision bearings are used for smooth turning return movement. The table unit has positioning mechanisms for each 90° and 180° of rotation. Rotation position is detected by provision of an auto switch sensor. Examples of applications where the turntable series would be used include assembly lines, inspection lines etc. with turning operations.

Configuration Options

Select Product Options

	Select values from the drop down lists or make appropriate selections to configure the part number.
Bearing Style	-- Pick an Option -- L (Ball Bushing Bearing) M (Slide Bearing)
Bore Size	-- Pick an Option -- 63mm 80mm 100mm
Port Thread	-- Pick an Option -- Rc TN (NPT) TF (G)
Stroke	-- Pick an Option -- 25mm 50mm 75mm 100mm 125mm 150mm 175mm 200mm
Table Turn Position	-- Pick an Option -- 10 (90° Rotation, No Detector Arms, No Switch Bracket) 11 (90° Rotation, 4 Detector Arms (a,b,c,d), Switch Bracket) 12 (90° Rotation, 3 Detector Arms(a,b,c), Switch Bracket) 13 (90° Rotation, 2 Detector Arms(a,c), Switch Bracket) 14 (90° Rotation, 2 Detector Arms(a,b), Switch Bracket) 15 (90° Rotation, 1 Detector Arm(a), Switch Bracket) 20 (180° Rotation, No Detector Arms, No Switch Bracket) 23 (180° Rotation, 2 Detector Arms(a,c), Switch Bracket) 25 (180° Rotation, 1 Detector Arm(a), Switch Bracket)
Auto Switch	-- Pick an Option -- No Switch M9B--Solid State, Gen. Purpose, 2 Wire, Horizontal M9BV--Solid State, Gen. Purpose, 2 Wire, Vertical M9BW--Solid State, 2-color Indication, 2 Wire, Horizontal M9BWV--Solid State, 2-color Indication, 2 Wire, Vertical M9N--Solid State, Gen. Purpose, 3 Wire NPN, Horizontal M9NV--Solid State, Gen. Purpose, 3 Wire NPN, Vertical M9NW--Solid State, 2-color Indication, 3 Wire NPN, Horizontal M9NWV--Solid State, 2-color Indication, 3 Wire NPN, Vertical M9P--Solid State, Gen. Purpose, 3 Wire PNP, Horizontal M9PV--Solid State, Gen. Purpose, 3 Wire PNP, Vertical M9PW--Solid State, 2-color Indication, 3 Wire PNP, Horizontal M9PWV--Solid State, 2-color Indication, 3 Wire PNP, Vertical A90--Reed, AC Volt, Horizontal A90V--Reed, DC Volt, AC Volt, Vertical A93--Reed, DC Volt, AC Volt, LED, Horizontal A93V--Reed, DC Volt, AC Volt, LED, Vertical A96--Reed, DC Volt, LED, Horizontal A96V--Reed, DC Volt, LED, Vertical Y7BW--Solid State, 2-color Indication, 2 Wire, Horizontal Y7BWV--Solid State, 2-color Indication, 2 Wire, Vertical Y7NW--Solid State, 2-color Indication, 3 Wire NPN, Horizontal Y7NWV--Solid State, 2-color Indication, 3 Wire NPN, Vertical Y7P--Solid State, Gen. Purpose, 3 Wire PNP, Horizontal Y7PV--Solid State, Gen. Purpose, 3 Wire PNP, Vertical Y7PW--Solid State, 2-color Indication, 3 Wire PNP, Horizontal Y7PWV--Solid State, 2-color Indication, 3 Wire PNP, Vertical Y59A--Solid State, Gen. Purpose, 3 Wire NPN, Horizontal Y59B--Solid State, Gen. Purpose, 2 Wire, Horizontal Y69A--Solid State, Gen. Purpose, 3 Wire NPN, Vertical Y69B--Solid State, Gen. Purpose, 2 Wire, Vertical Z73--Reed, DC Volt., AC Volt, 2 Wire, LED Z76--Reed, DC Volt., 3 Wire, LED Z80--Reed, DC Volt., AC Volt, 2 Wire
Lead Wire or Prewired Connector	-- Pick an Option -- 0.5m (Or None in the Case of No Switch) M (1m) L (3m) Z (5m) SAPC (0.5m Cord Length, M8-3 Pin Connector) SBPC (0.5m Cord Length, M8-4 Pin Connector) SDPC (0.5m Cord Length, M12-4 Pin Connector) MAPC (1.0m Cord Length, M8-3 Pin Connector) MBPC (1.0m Cord Length, M8-4 Pin Connector) MDPC (1.0m Cord Length, M12-4 Pin Connector)
Number	-- Pick an Option -- 2 pcs. (Or None in the Case of No Switch) S (1 pc.)
Table Auto Switch	-- Pick an Option -- No Switch M9B--Solid State, Gen. Purpose, 2 Wire, Horizontal M9BW--Solid State, 2-color Indication, 2 Wire, Horizontal M9N--Solid State, Gen. Purpose, 3 Wire NPN, Horizontal M9NW--Solid State, 2-color Indication, 3 Wire NPN, Horizontal M9P--Solid State, Gen. Purpose, 3 Wire PNP, Horizontal M9PW--Solid State, 2-color Indication, 3 Wire PNP, Horizontal A90--Reed, AC Volt, Horizontal A93--Reed, DC Volt, AC Volt, LED, Horizontal A96--Reed, DC Volt, LED, Horizontal
Table Switch Lead Wire or Prewired Connector	-- Pick an Option -- 0.5m (Or None in the Case of No Switch) M (1m) L (3m) Z (5m) SAPC (0.5m Cord Length, M8-3 Pin Connector) SBPC (0.5m Cord Length, M8-4 Pin Connector) SDPC (0.5m Cord Length, M12-4 Pin Connector) MAPC (1.0m Cord Length, M8-3 Pin Connector) MBPC (1.0m Cord Length, M8-4 Pin Connector) MDPC (1.0m Cord Length, M12-4 Pin Connector)
Table Switch Number	-- Pick an Option -- 2 pcs. (Or None in the Case of No Switch) 3 pcs. 4 pcs. S (1 pc.)
	Options in: Gray are not compatible with other selected option value. Red conflict with another selected option value. Amber are not recommended.
