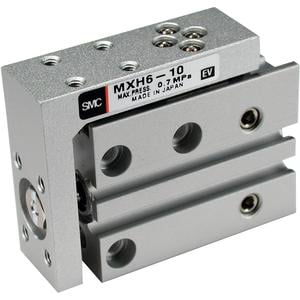

MXH, Compact Slide Table, Linear Guide

The MXH compact slide table provides a convenient integration of an endless track linear guide and air cylinder, with higher load carrying capabilities and longer standard strokes when compared to previous series. The use of a linear guide provides outstanding displacement accuracy against moments, and excellent parallelism of travel. The compact narrow profile of the unit allows for parallel position of several slides in a limited space. The MXH is suitable for a wide range of industries, which require material or tool handling, and precision non-rotating accuracy. The cylinder can be mounted in 4 directions and piping can be connected from 3 sides. MXH is available in 4 bore sizes from 6mm to 10mm and standard strokes up to 60mm.

Configuration Options

Select Product Options

	Select values from the drop down lists or make appropriate selections to configure the part number.
Bore Size	-- Pick an Option -- 6mm 10mm 16mm 20mm
Stroke	-- Pick an Option -- 5mm 10mm 15mm 20mm 25mm 30mm 40mm 50mm 60mm
Auto Switch	-- Pick an Option -- No Switch M9B--Solid State, Gen. Purpose, 2 Wire, Horizontal, 0.5M M9BV--Solid State, Gen. Purpose, 2 Wire, Vertical, 0.5M M9BW--Solid State, 2-color Indication, 2 Wire, Horizontal M9BWV--Solid State, 2-color Indication, 2 Wire, Vertical M9N--Solid State, Gen. Purpose, 3 Wire NPN, Horizontal, 0.5M M9NV--Solid State, Gen. Purpose, 3 Wire NPN, Vertical, 0.5M M9NW--Solid State, 2-color Indication, 3 Wire NPN, Horizontal M9NWV--Solid State, 2-color Indication, 3 Wire NPN, Vertical M9P--Solid State, Gen. Purpose, 3 Wire PNP, Horizontal, 0.5M M9PV--Solid State, Gen. Purpose, 3 Wire PNP, Vertical, 0.5M M9PW--Solid State, 2-color Indication, 3 Wire PNP, Horizontal M9PWV--Solid State, 2-color Indication, 3 Wire PNP, Vertical A90--Reed, AC Volt, Horizontal, 0.5M A90V--Reed, DC Volt, AC Volt, Vertical, 0.5M A93--Reed, DC Volt, AC Volt, LED, Horizontal, 0.5M A93V--Reed, DC Volt, AC Volt, LED, Vertical, 0.5M A96--Reed, DC Volt, LED, Horizontal, 0.5M A96V--Reed, DC Volt, LED, Vertical, 0.5M
Lead Wire or Prewired Connector	-- Pick an Option -- 0.5m (Or None in the Case of No Switch) L (3m) Z (5m) SAPC (0.5m Cord Length, M8-3 Pin Connector) SBPC (0.5m Cord Length, M8-4 Pin Connector) SDPC (0.5m Cord Length, M12-4 Pin Connector) MAPC (1.0m Cord Length, M8-3 Pin Connector) MBPC (1.0m Cord Length, M8-4 Pin Connector) MDPC (1.0m Cord Length, M12-4 Pin Connector) LAPC (3.0m Cord Length, M8-3 Pin Connector) LDPC (3.0m Cord Length, M12-4 Pin Connector)
Number	-- Pick an Option -- 2 pcs. (Or None in the Case of No Switch) 3 pcs. 4 pcs. S (1 pc.)
	Options in: Gray are not compatible with other selected option value. Red conflict with another selected option value. Amber are not recommended.
