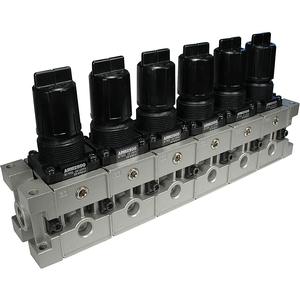

ARM2500/3000, Modular Style, Regulator Manifold Series

Regulator manifold series ARM is available in standard size 1000 & 2000 and the modular style is available in sizes 2500 & 3000. Standard models are available with 4 connection methods and have backflow function availability. Modular styles can be freely mounted on a manifold station and have easy set up using the new handle.

• Regulator manifold, modular type
• Metric type threads
• Optimal for central pressure control
• One-touch lock system
• Maximum operating pressure: 1.0MPa

Configuration Options

Select Product Options

	Select values from the drop down lists or make appropriate selections to configure the part number.
Size	-- Pick an Option -- 25 (Size 2500, Flow 750Nl/min) 30 (Size 3000, Flow 900Nl/min)
Stations	-- Pick an Option -- 2 Stations 3 Stations 4 Stations 5 Stations 6 Stations 7 Stations 8 Stations 9 Stations 10 Stations
Piping Specification	-- Pick an Option -- A (IN: Common) B (IN: Individual)
Thread	-- Pick an Option -- Rc(PT) F (G(PF)) N (NPT)
Port Size	-- Pick an Option -- 02 (PT 1/4) 03 (PT 3/8)
Accessory	-- Pick an Option -- None G1 (Pressure Gauge Back Face Thread) G2 (Pressure Gauge Vertical Face Thread)
	Options in: Gray are not compatible with other selected option value. Red conflict with another selected option value. Amber are not recommended.
