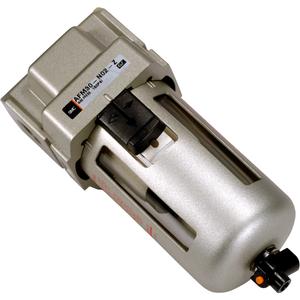

AFM20-40, AFM Mist Separator

Series AFM Modular Style Mist Separator is a cost effective, clean looking solution to your filtration needs. The standard filtration is 0.3µm with a 95% particle size collection rate. The modular design allows connection with other SMC air preparation equipment. Use in combination with the AF series to meet your clean room filtration requirements. The AFM is available in 3 size options.

• Mist separator
• Can be used in a more compact modular design
• Bowl can be attached and detached with one hand
• Turn proof structure at pressurized state for bowl removal
• Standard drain cock for one-touch drain exhaust.
• Cost effective and clean looking design.
• Rc, G(PF) or NPT threads

Configuration Options

Select Product Options

	Select values from the drop down lists or make appropriate selections to configure the part number.
Size	-- Pick an Option -- 20 (1/8) 30 (3/8) 40 (1/2)
Thread	-- Pick an Option -- M Thread, Rc(PT) F (G) N (NPT)
Port Size	-- Pick an Option -- 01 (1/8) 02 (1/4) 03 (3/8) 04 (1/2) 06 (3/4)
Accessory	-- Pick an Option -- None B (Bracket) C [Float Style Auto Drain (NC)] D [Float Style Auto Drain (N.O.)] BC [Bracket+Float Style Auto Drain (N.C.)] BD [Bracket+Float Style Auto Drain (N.O.)]
Option 1	-- Pick an Option -- None 2 (Metal Bowl) 6 (Nylon Bowl) 8 (Metal Bowl w/Level Gauge)
Option 2	-- Pick an Option -- None C [Bowl Guard (Size 2000 Only)] CR [Bowl Guard (AFM20 Only)+Flow Direction: Right->Left] J [Drain Guide Rc(PT) 1/4] JR (Drain Guide 1/4+Flow Direction: Right->Left) R (Flow Direction: Right->Left)
Option 3	-- Pick an Option -- None W (Drain Cock w/Barb Fitting) WZ (Drain Cock w/Barb Fitting+Name Plate, Caution on Bowl) Z (Name Plate, Caution on Bowl)
	Options in: Gray are not compatible with other selected option value. Red conflict with another selected option value. Amber are not recommended.
