AC20-60(FRL), Made-to-Order

The cost effective and clean looking AC series allows you to pick a combination of modular style air preparation equipment that best suits your needs. The series, available in 8 size options to ensure optimum performance, offers energy savings, with higher flow rates. Simple assembly and maintenance reduces downtime.

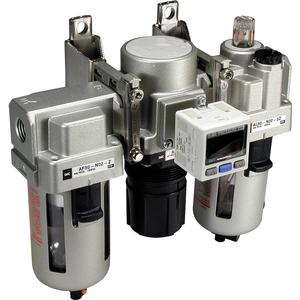

• F.R.L. unit with digital pressure switch (-X465 option)
• Pressure switch model: ISE30---L
• Pressure switch set pressure range: -0.1 to 1 MPa
• Pressure gauge port size: Rc1/8
• Applicable on models: AC20, AC25, AC30, AC40,
  AC40-06, AC50, AC55, AC60

Configuration Options

Select Product Options

	Select values from the drop down lists or make appropriate selections to configure the part number.
Size	-- Pick an Option -- 20 (1/8) 25 (1/4) 30 (3/8) 40 (1/2) 50 (3/4) 55 (1) 60 (1)
Thread	-- Pick an Option -- Rc(PT) F (G(PF)) N (NPT)
Port Size	-- Pick an Option -- 01 (1/8) 02 (1/4) 03 (3/8) 04 (1/2) 06 (3/4) 10 (1)
Accessory	-- Pick an Option -- None C [Float Style Auto Drain (N.C.)] D [Float Style Auto Drain (N.O.)]
Attachment	-- Pick an Option -- None K (Check Valve) KT (Check Valve+T Type Spacer) KTV (Check Valve+T Type Spacer+3 Port Residual Pressure Release Valve) KV (Check Valve+3 Port Residual Pressure Release Valve) T (T Spacer) TV (T Spacer+3 Port Residual Pressure Relief Shut-off Valve) V (Residual Pressure Relief 3 Port Valve)
Option 1	-- Pick an Option -- None 1 (0.02~0.2MPa) 2 (Metal Bowl) 3 (Lubricator w/Drain Cock) 6 (Nylon Bowl) 8 (Metal Bowl w/Level Gauge) 12 (0.02~0.2MPa+Metal Bowl) 13 (0.02~0.2MPa+Lubricator w/Drain Cock) 16 (0.02~0.2MPa+Nylon Bowl) 18 (0.02~0.2MPa+Metal Bowl w/Level Gauge) 23 (Metal Bowl+Lubricator w/Drain Cock) 3 (Lubricator w/Drain Cock+Nylon Bowl) 38 (Lubricator w/Drain Cock+Metal Bowl w/Level Gauge) 123 (0.02~0.2MPa+Metal Bowl+Lubricator w/Drain Cock) 136 (0.02~0.2MPa+Lubricator w/Drain Cock+Nylon Bowl) 138 (0.02~0.2MPa+Lubricator w/Drain Cock+Metal Bowl w/Level Gauge)
Option 2	-- Pick an Option -- None C (Bowl Guard) CN (Bowl Guard+Non-Relieving Type) CNR (Bowl Guard+Non-Relieving Type+Flow Direction:Right->Left) CR (Bowl Guard+Flow Direction:Right->Left) J (Drain Guide 1/4) JN [Drain Guide Rc(PT) 1/4+Non-relieving Type] JNR [Drain Guide Rc(PT) 1/4+Non-relieving+Flow Direction:Right->Left] JR [Drain Guide Rc(PT) 1/4+Flow Direction:Right->Left] N (Non-relieving) NR (Non-relieving+Flow Direction:Right->Left) R (Flow Direction: Right->Left)
Option 3	-- Pick an Option -- None W (Drain Cock, Barb Fitting) WZ (Drain Cock, Barb Fitting+Name Plate, Caution on Bowl PSI) Z (Name Plate, Caution on Bowl PSI)
Digital Pressure Switch	-- Pick an Option -- X465A (Digital Pressure NPN) X465B (Digital Pressure PNP) X465C (Digital Pressure Switch 1-5V) X465D (Digital Pressure Switch 4-20mA)
	Options in: Gray are not compatible with other selected option value. Red conflict with another selected option value. Amber are not recommended.
