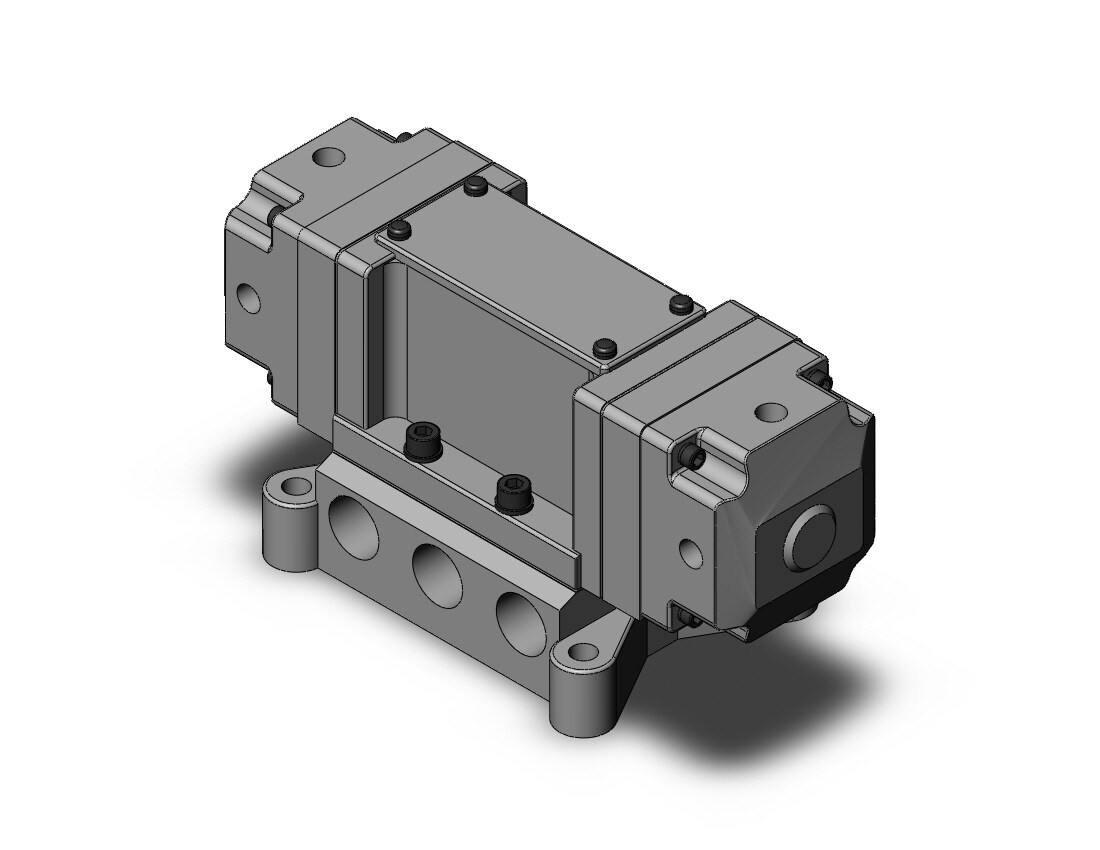

SMC VPA4450-04 valve, air pilot, VP4 SOL VALVE 4/5 PORT

Part Number: VPA4450-04

Series Catalog

Series image - for reference only
Please pull down this page to review full catalog specifications PDF

Your Price: $308.40

Availability:

Available to Ship Today: 0

Quantity

Description
tab 10
tab 7
Documents: tab 3
SMC Part Description: tab 4
SMC Products Line: tab 5
SMC Family: tab 1
SMC Family Code: tab 11
SMC Class Description: tab 8
Weight: tab 9
tab 6

Ordering Guide

Series VPA4 is a 5 port air operated valve with a rubber seal.? The series is available with or without a sub-plate.? Applicable thread types include Rc, G, NPT, NPTF

5 port air operated valve with rubber seal
Available with or without sub-plate
Thread types include Rc, G, NPT, NPTF

Series Catalog

Click Here for Return Policy

VALVE, AIR PILOT

VALVE

VP4 SOL VALVE 4/5 PORT

VP4 BASE MT 3/4

6.17294 lb

Function		Valve model	Port size	Flow characteristics						Mass (kg)
				1 4/2(P A/B)			4/2 5/3(A/B EA/EB)
					b	Cv		b	Cv
3 position	Exhaust center	VPA4450	3/8	16	0.28	3.9	16(15)	0.29(0.28)	4.2(4.0)	2.5
