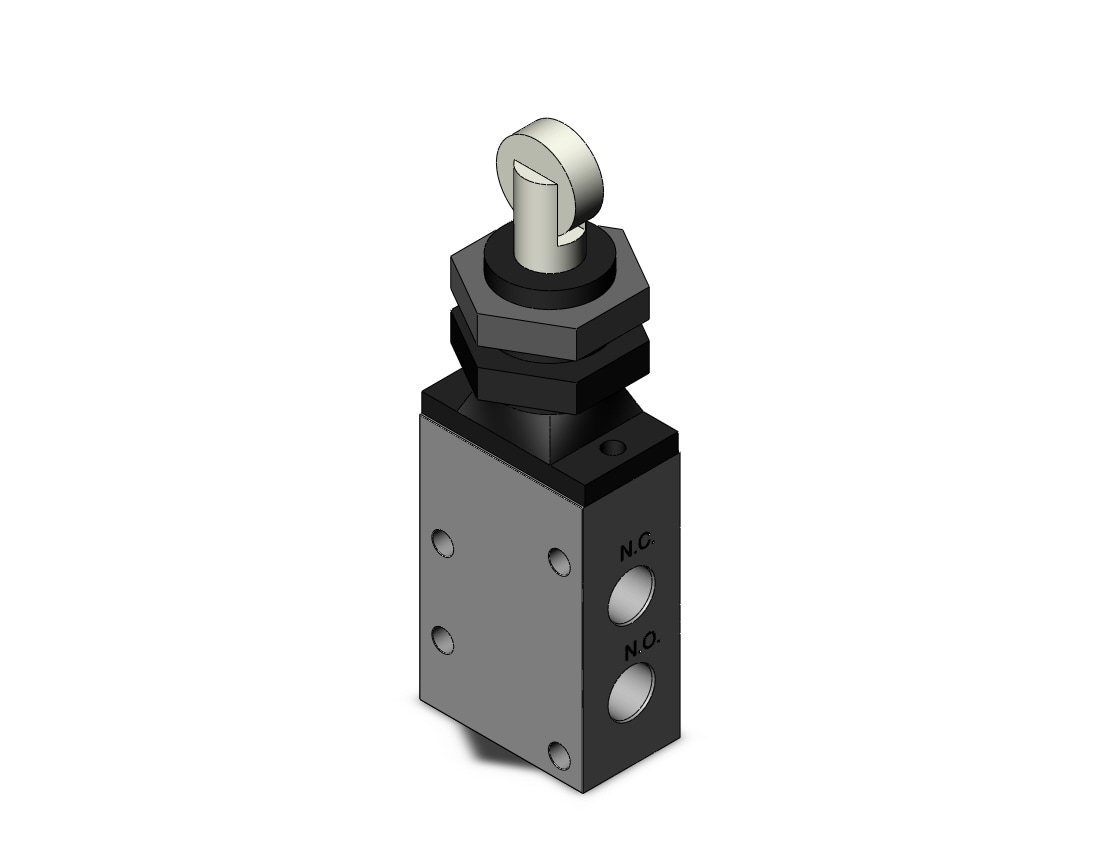

SMC VM430-N01-06 mech valve w/actuators, VM (VFM/VZM) MECHANICAL VALVE

Part Number: VM430-N01-06

Series Catalog

Series image - for reference only
Please pull down this page to review full catalog specifications PDF

Your Price: $31.70

Availability:

Available to Ship: 0 qty

Quantity

Description
Documents: tab 3
SMC Part Description: tab 4
SMC Products Line: tab 5
SMC Family: tab 1
SMC Family Code: tab 11
SMC Class Description: tab 8
Weight: tab 9
tab 6

The VM series is a mechanical, poppet valve. Their compact size requires little mounting space. The VM series offers a wide variety of actuator styles and flow capacity up to 1.0 Cv.

Fluid: air
Operating pressure: -100kPa to 1.0MPa
Effective area (Cv): 7mm² (0.38)
Ambient and fluid temperature: -5 to 60 C (no freezing)
Port size (nominal size): Rc(PT) 1/8 (6A)

Series Catalog

Click Here for Return Policy

MECH VALVE W/ACTUATORS

VALVE

VM (VFM/VZM) MECHANICAL VALVE

VM BODY PT 1/8NPT (F)

.33711 lb

Model	Port size	Material	Sensor cable	Mass
Model	Port size	Material	Sensor cable	With sensor cable	Without sensor cable
01	R 1/8M5 x 0.8	Case: C3604 + nickel plated, Piping port/pressure sensor: Stainless steel 316L	PSE56 - : Oil proof heavy-duty vinyl cable with air tube, 3 cores, ?5.1, 3 m, Conductor area: 0.2 mm2, Insulator O.D.: 1.12 mm PSE56 - -28: Oil proof heavy-duty vinyl cable with air tube, 2 cores, ?5.1, 3 m, Conductor area: 0.2 mm2, Insulator O.D.: 1.12 mm	193 g	101 g
N01	NPT 1/8M5 x 0.8	Case: C3604 + nickel plated, Piping port/pressure sensor: Stainless steel 316L	PSE56 - : Oil proof heavy-duty vinyl cable with air tube, 3 cores, ?5.1, 3 m, Conductor area: 0.2 mm2, Insulator O.D.: 1.12 mm PSE56 - -28: Oil proof heavy-duty vinyl cable with air tube, 2 cores, ?5.1, 3 m, Conductor area: 0.2 mm2, Insulator O.D.: 1.12 mm	194 g	102 g
