SMC SS5X5-45SC-12B-M mfld assy, 12-sta, SS5Y5 MANIFOLD SY5000

Part Number: SS5X5-45SC-12B-M

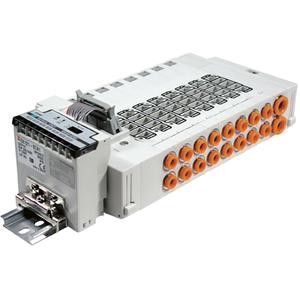

Series image - for reference only
Please pull down this page to review full catalog specifications PDF

Your Price: $526.50

Available to Ship Today: 0

Quantity

MFLD ASSY, 12-STA

VALVE

SS5Y5 MANIFOLD SY5000

SS5Y5 NO SIZE RATING

2.40047 lb

Model	Applicable valve	Manifold type	P(SUP), R(EXH)	Valve stations Note)	A, B port specifications		Port size		Manifold base weight W (g) n: Stations
					Location	Direction	P, R port	A, B port
SS5X5-45	SX5 40	Stacking type/DIN rail mounted	Common SUP/Common EXH	2 to 20 stations	Base	Side	C10 (One-touch fitting for ?10)	C4 (One-touch fitting for ?4) C6 (One-touch fitting for ?6) C8 (One-touch fitting for ?8)	2 to 10 stations: W = 47n + 15611 to 20 stations: W = 47n + 190
