SMC PF2W740T-06-67 digital flow sw, integ sensor, IFW/PFW FLOW SWITCH

Part Number: PF2W740T-06-67

Series Catalog

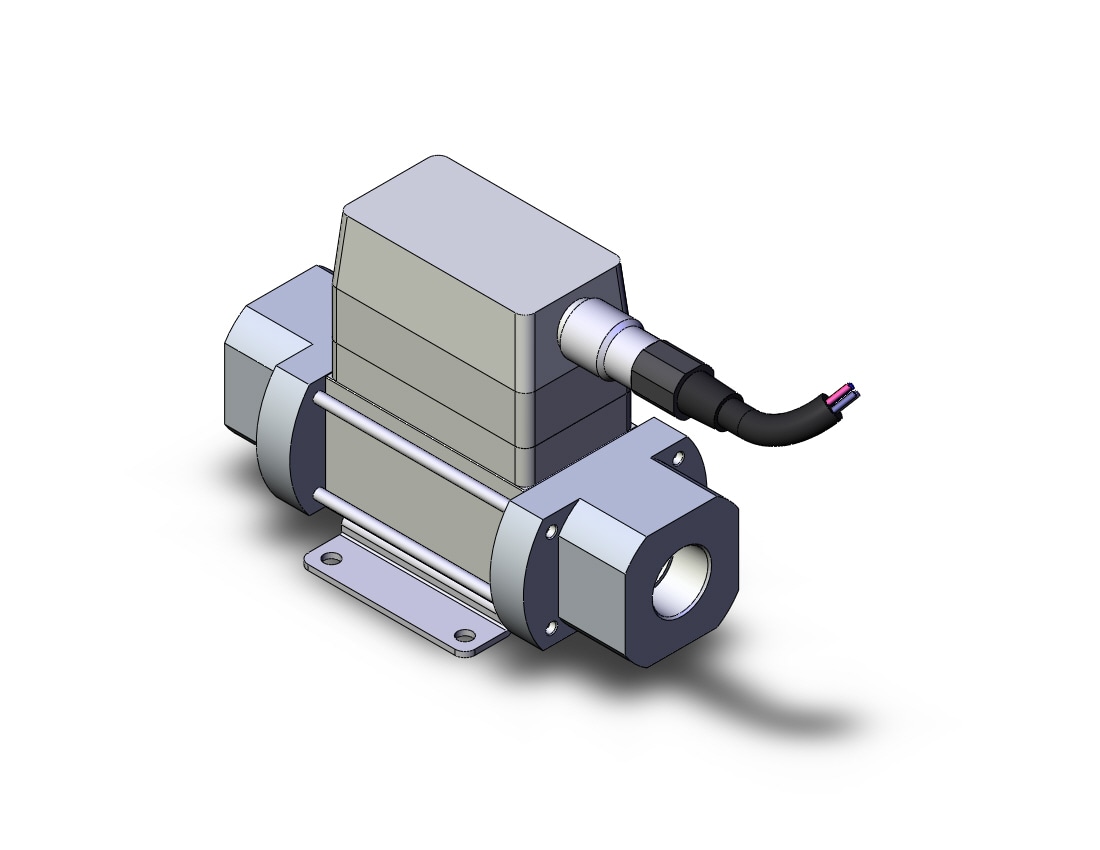

Series image - for reference only
Please pull down this page to review full catalog specifications PDF

Your Price: $642.76

Availability:

Available to Ship Today: 0

Quantity

Description
tab 10
tab 7
Documents: tab 3
SMC Part Description: tab 4
SMC Products Line: tab 5
SMC Family: tab 1
SMC Family Code: tab 11
SMC Class Description: tab 8
Weight: tab 9
tab 6

Ordering Guide

SMC offers a variety of digital flow switches. Series PF2A for air, PF2W for water, PF2D for deionized water and chemicals. Flow rate setting and monitoring are possible with the digital display. Integrated and remote type displays are available for different types of application. Water resistant construction is used conforming to IP65 protection. Switching from real-time flow rate to accumulated flow is possible.

Digital flow switch for high temperature fluids
Integrated display type
Temperature range: 0 to 90C
Flow rate range: 0.5-4(l/min) ~ 5-40(l/min)
PNP/NPN open collector 2 outputs
Port sizes: 3/8, 1/2, 3/4

Series Catalog

Click Here for Return Policy

DIGITAL FLOW SW, INTEG SENSOR

INSTRUMENTATION

IFW/PFW FLOW SWITCH

IFW/PFW 3/4INCH PT VERSION

1.85818 lb

Model

Measured fluid

Flow rate measurement range

Set flow rate range

Rated flow range

Minimum set unit

Accumulated pulse flow rate exchange value (Pulse width: 50 ms)

Operating fluid temperature

Linearity

Repeatability

Temperature characteristics Note 1)

Current consumption (No load)

Weight Note 2)

Port size (Rc, NPT, G)

Detection type

Indicator light

Display units Note 3)

Operating pressure range

Withstand pressure

Accumulated flow range Note 4)

Output Note 5)specifications

Status LED?s

Response time

Hysteresis

Power supply voltage

Resistance

Real-time flow rate

Accumulated flow

Switch output

Accumulated pulse output

Enclosure

Operating temperature range

Withstand voltage

Insulation resistance

Vibration resistance

Impact resistance

Noise resistance

PF2W740T

Water, Mixture of water (50%) and ethylene glycol (50%)

3.5 to 45 l/min

5 to 40 l/min

0.5 l/min

0.5 l/pulse

0 to 90C (with no cavitation)

?5% F.S. or less

?3% F.S. or less

?5% F.S. or less (0 to 90C, based on 25C)

70 mA or less

710 g

1/2, 3/4

Karman vortex

3-digit, 7-segment LED

l/min, gal(US)/min

l, gal(US)

0 to 1 MPa

1.5 MPa

0 to 999999 l

NPN open collector Maximum load current: 80 mA; Internal voltage drop: 1 V or less (with load current of 80 mA) Maximum applied voltage: 30 V; 2 outputs

PNP open collector Maximum load current: 80 mA; Internal voltage drop: 1.5 V or less (with load current of 80 mA); 2 outputs

NPN or PNP open collector (same as switch output)

Illuminates when output is ON OUT1: Green; OUT2: Red

1 sec. or less

Hysteresis mode: Variable (can be set from 0); Window comparator mode Note 6): 3-digit fixed

12 to 24 VDC (ripple ?10% or less)

IP65

Operating: 0 to 50C, Stored: ?25 to 85C (with no freezing and condensation)

1000 VAC for 1 min. between external terminal and case

50M and more (500 VDC Mega) between external terminal and case

10 to 500 Hz with a 1.5 mm amplitude or 98 m/s2 acceleration in each X, Y, Z direction for 2 hrs, whichever is smaller.

490 m/s2 in X, Y, Z directions 3 times each

1000 Vp-p, Pulse width 1 ?s, Rise time 1 ns
