SMC LVM10R1-6B-1-Q valve, chemical, body ported, LVM CHEMICAL VALVE, 2 PORT

Part Number: LVM10R1-6B-1-Q

Series Catalog

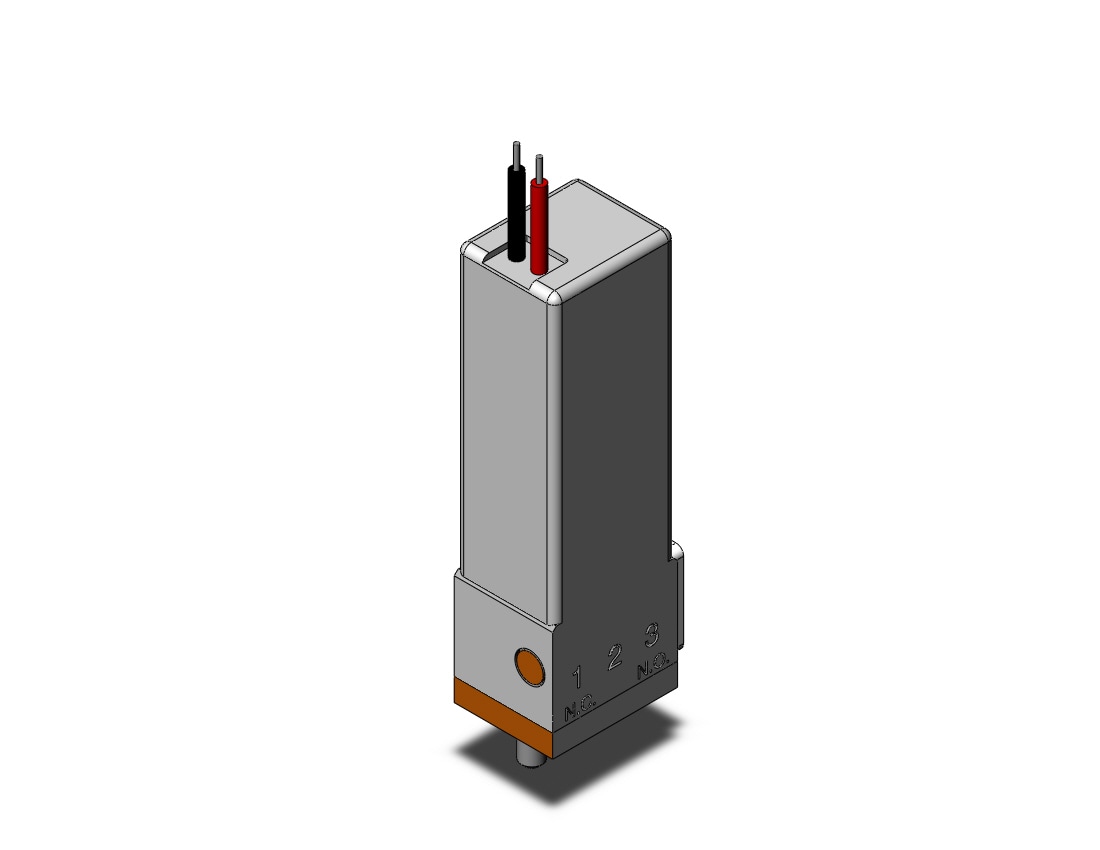

Series image - for reference only
Please pull down this page to review full catalog specifications PDF

Your Price: $64.50

Availability:

Available to Ship in 7 Days: 200 qty

Quantity

Series Catalog

Click Here for Return Policy

VALVE, CHEMICAL, BODY PORTED

VALVE

LVM CHEMICAL VALVE, 2 PORT

LVM BODY PORT, NO SIZE RATING

.22046 lb

Model

Valve construction

Valve type

Number of ports

Fluid Note 1)

Operating pressure range

Orifice diameter

Response time

Leakage

Proof pressure Note 2)

Ambient temperature

Fluid temperature

Volume of valve chamber

Mounting orientation

Enclosure

Weight

Rated voltage

Allowable Note 5)voltage fluctuation

Type of coil insulation

Power consump- tion (When rated voltageis at 24 V)

Coil switching noise Note 5)

Body ported (Tubing type)

LVM10R1

Diaphragm type direct operated poppet (Rocker type)

N.C.

Air, Water, Pure water, Diluent, Cleaning solvent

?75 kPa to 0.25 MPa

1.4 mm

10 ms or less (at pneumatic pressure)

Zero leakage, either external or internal (at water pressure)

0.38 MPa

0 to 50C

0 to 50C (with no condensation)

20 l

Free

IP40 or equivalent

34 g (without sub-plate), 42 g (with sub-plate)

12, 24 VDC

?10% of rated voltage

Class B

In- rush

Hold- ing

50 dB
