SMC IT1010-N01B regulator, electro-pneu, IT/ITV0000/1000 E/P REGULATOR

Part Number: IT1010-N01B

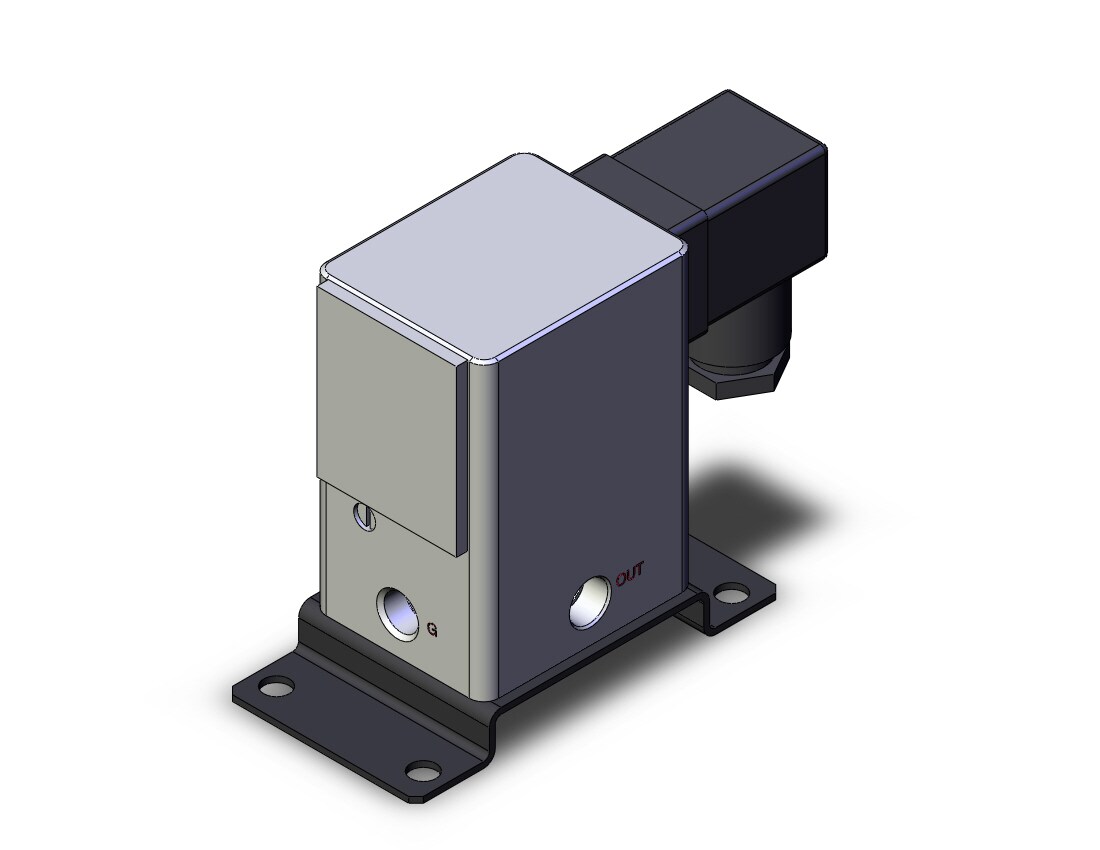

Series image - for reference only
Please pull down this page to review full catalog specifications PDF

Your Price: $314.75

Availability:

Available to Ship Today: 0

The item you are trying to purchase is currently out of stock.
Please enter your name, email, and phone number below.
We will contact you as soon as this product is available.

Name: *

Email: *

Phone: *

Verification: *

Type the word above...

Click Here for Return Policy

REGULATOR, ELECTRO-PNEU

INSTRUMENTATION

IT/ITV0000/1000 E/P REGULATOR

IT1000 1/8 INCNPT VERSION

.56762 lb

Model	Port size	Material	Sensor cable	Mass
Model	Port size	Material	Sensor cable	With sensor cable	Without sensor cable
01	R 1/8M5 x 0.8	Case: C3604 + nickel plated, Piping port/pressure sensor: Stainless steel 316L	PSE56 - : Oil proof heavy-duty vinyl cable with air tube, 3 cores, ?5.1, 3 m, Conductor area: 0.2 mm2, Insulator O.D.: 1.12 mm PSE56 - -28: Oil proof heavy-duty vinyl cable with air tube, 2 cores, ?5.1, 3 m, Conductor area: 0.2 mm2, Insulator O.D.: 1.12 mm	193 g	101 g
N01	NPT 1/8M5 x 0.8	Case: C3604 + nickel plated, Piping port/pressure sensor: Stainless steel 316L	PSE56 - : Oil proof heavy-duty vinyl cable with air tube, 3 cores, ?5.1, 3 m, Conductor area: 0.2 mm2, Insulator O.D.: 1.12 mm PSE56 - -28: Oil proof heavy-duty vinyl cable with air tube, 2 cores, ?5.1, 3 m, Conductor area: 0.2 mm2, Insulator O.D.: 1.12 mm	194 g	102 g
