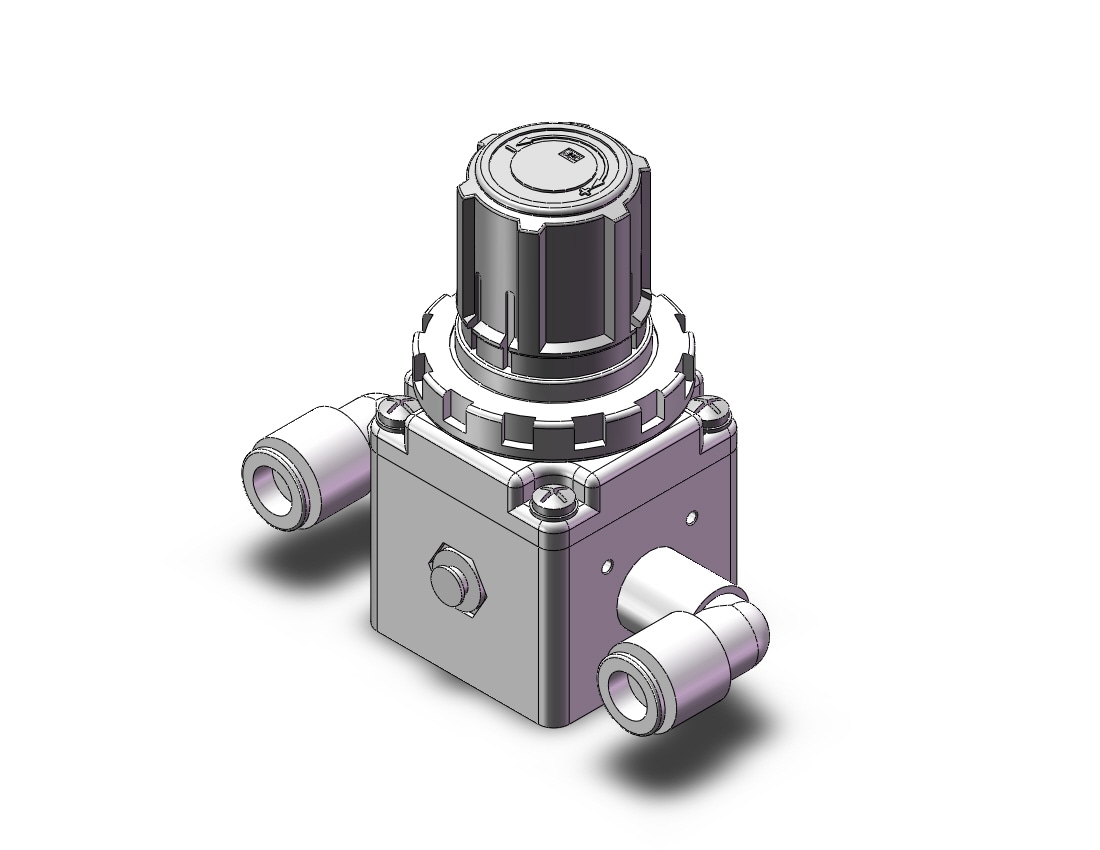

SMC IRV20-LN11 vacuum regulator, IRV VACUUM REGULATOR

Part Number: IRV20-LN11

Series Catalog

Series image - for reference only
Please pull down this page to review full catalog specifications PDF

Your Price: $85.10

Availability:

Available to Ship: 0 qty

Quantity

Description
tab 10
tab 7
Documents: tab 3
SMC Part Description: tab 4
SMC Products Line: tab 5
SMC Family: tab 1
SMC Family Code: tab 11
SMC Class Description: tab 8
Weight: tab 9
tab 6

Ordering Guide

The IRV series vacuum regulator is offered in 3 compact, lightweight sizes. Adjustment resolution is possible within 0.13kPa.? Port sizes available are 1/8Rc(PT), and 1/4, 3/8 and 1/2 with Rc(PT), NPT or G(PF) thread types.

Single sided connections series
Mass reduced by 20%
Max. flow 140? /min (ANR) and 240? /min (ANR)
Integrated digital pressure switch for panel mounting
Built-in one-touch fittings

Series Catalog

Click Here for Return Policy

VACUUM REGULATOR

AIRLINE EQUIPMENT

IRV VACUUM REGULATOR

IRV 3/8 INCH

.76738 lb

Model	Fluid	Set pressure range Note 1)	Withstand pressure Note 2)	Atmospheric intake consumption Note 3)	Knob resolution	Ambient and fluid temperature	VAC side tubing O.D.	SET side tubing O.D.	Weight (Without accessories)
									Standard connections	Single sided connections
IRV20	Air	?100 to ?1.3 kPa	100 kPa (Except with pressure gauge)	0.6 l/min (ANR) or less	0.13 kPa or less	5 to 60C	?6, ?8, ?10 ?1/4andquot;, ?5/16andquot;, ?3/8andquot;	?6, ?8, ?10 ?1/4andquot;, ?5/16andquot;, ?3/8andquot;	250 g (IRV20-C10)	250 g (IRV20A-C10)

SMC P601010-11 plug nut assy for irv, IRV VACUUM REGULATOR***

$2.53

Add to Quote

Add To Cart

SMC P601010-18 gauge nut assembly, IRV VACUUM REGULATOR***

$4.34

Add to Quote

Add To Cart

SMC P601020-2 diaphragm assy (irv), IRV VACUUM REGULATOR***

$27.71

Add to Quote

Add To Cart

SMC P601020-3 valve assy (irv), IRV VACUUM REGULATOR***

$13.10

Add to Quote

Add To Cart
