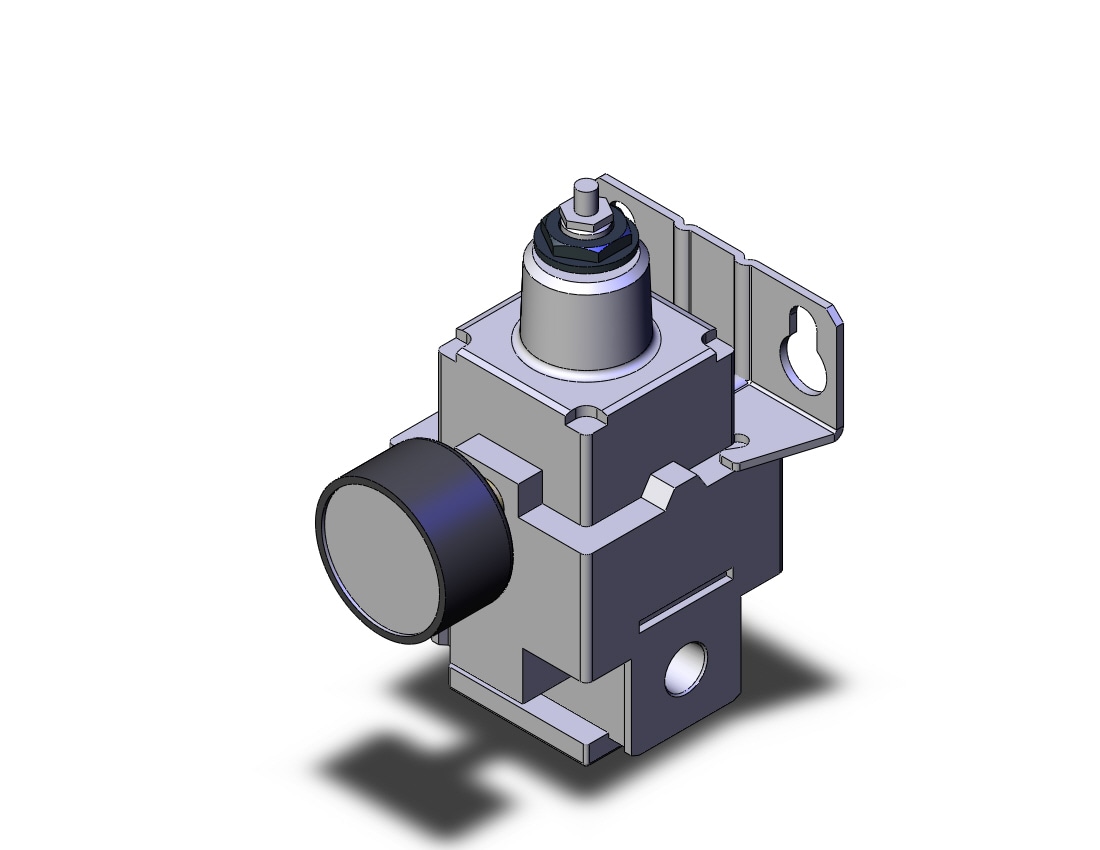

SMC IR3120-F02BG regulator, precision modular, IR PRECISION REGULATOR

Part Number: IR3120-F02BG

Series Catalog

Series image - for reference only
Please pull down this page to review full catalog specifications PDF

Your Price: $204.20

Availability:

Available to Ship Tomorrow*: 7 qty

Quantity

Description
tab 7
Documents: tab 3
SMC Part Description: tab 4
SMC Products Line: tab 5
SMC Family: tab 1
SMC Family Code: tab 11
SMC Class Description: tab 8
Weight: tab 9
tab 6

Series IR Precision Regulators are designed to be compact and light weight. The maximum set pressure has been expanded from the conventional 0.7MPa to 0.8MPa. Relief flow has been increased by nearly 5 times (compared to SMC IR201, IR401). The optio

Series Catalog

Click Here for Return Policy

REGULATOR, PRECISION MODULAR

AIRLINE EQUIPMENT

IR PRECISION REGULATOR

IR 1/4INCH MODULAR (NPT)

1.67940 lb

Model

Max. supply pressure

Min. supply pressure (1)

Regulating pressure range

Input signal (2)pressure

Sensitivity

Repeatability

Linearity (3)

Air consumption (4)(At supply pressure of 1.0 MPa)

Port size

Pressure gauge port

Ambient and fluid temperature

Mass (kg)

Air operated type

IR3120

Max. 1.0 MPa

Set pressure + 0.1 MPa

0.01 to 0.8 MPa

Within 0.2% of full span

Within ?0.5% of full span

Within ?1% of full span

11.5 l/min (ANR) or less

Rc 1/4, 3/8, 1/2

Rc 1/8 (2 locations)

?5 to 60C (No freezing)

0.71
