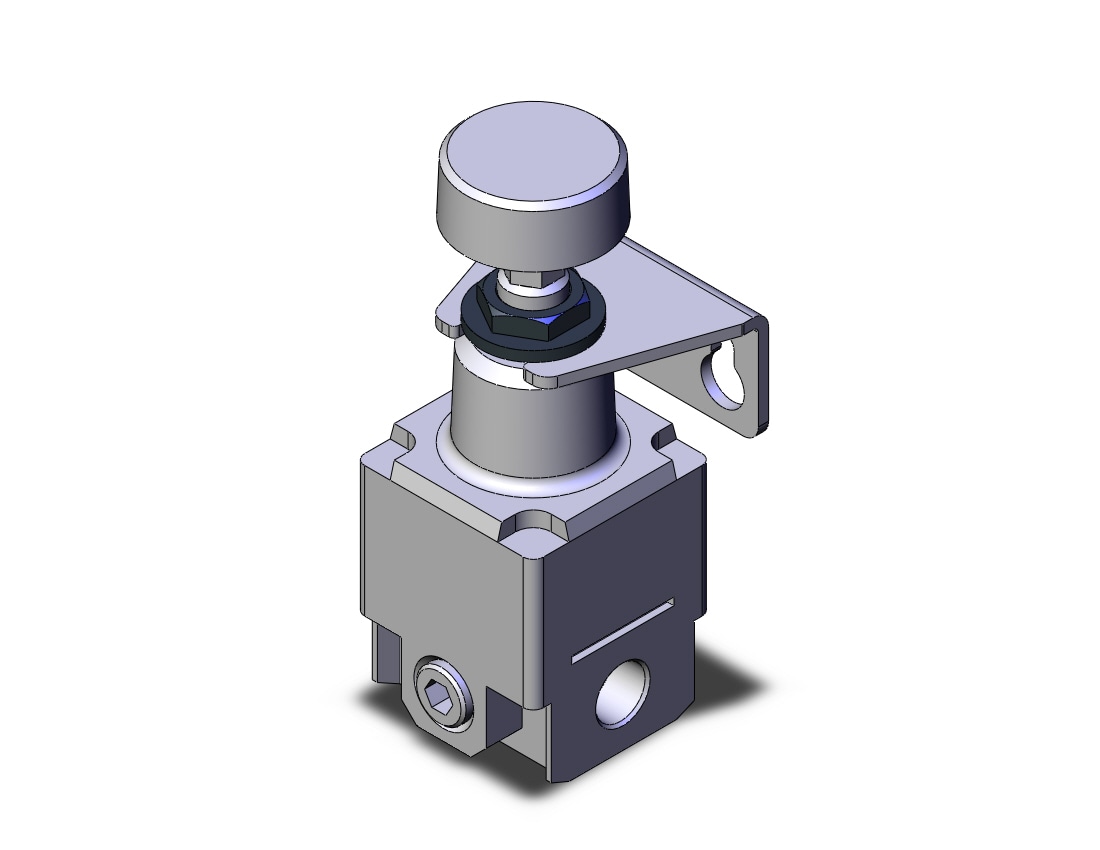

SMC IR1000-N01B regulator, precision modular, IR PRECISION REGULATOR***

Part Number: IR1000-N01B

Series Catalog

Series image - for reference only
Please pull down this page to review full catalog specifications PDF

Your Price: $81.10

Availability:

Available to Ship in 7 Days: 1 qty

Quantity

Description
tab 7
Documents: tab 3
SMC Part Description: tab 4
SMC Products Line: tab 5
SMC Family: tab 1
SMC Family Code: tab 11
SMC Class Description: tab 8
Weight: tab 9
tab 6

Series IR Precision Regulators are designed to be compact and light weight. The maximum set pressure has been expanded from the conventional 0.7MPa to 0.8MPa. Relief flow has been increased by nearly 5 times (compared to SMC IR201, IR401). The optional bracket and pressure gauge can be mounted on either the front or back of the unit.

Precision regulator
Regulating pressure range (MPa): 0.005 to 0.8 depending on model
Compact and lightweight
Bracket and pressure gauge can be mouted on either the front or back
2 air operated models

Series Catalog

Click Here for Return Policy

REGULATOR, PRECISION MODULAR

AIRLINE EQUIPMENT

IR PRECISION REGULATOR

IR 1/8INCH MODULAR (NPT)

.38212 lb

Model	Port size	Material	Sensor cable	Mass
Model	Port size	Material	Sensor cable	With sensor cable	Without sensor cable
01	R 1/8M5 x 0.8	Case: C3604 + nickel plated, Piping port/pressure sensor: Stainless steel 316L	PSE56 - : Oil proof heavy-duty vinyl cable with air tube, 3 cores, ?5.1, 3 m, Conductor area: 0.2 mm2, Insulator O.D.: 1.12 mm PSE56 - -28: Oil proof heavy-duty vinyl cable with air tube, 2 cores, ?5.1, 3 m, Conductor area: 0.2 mm2, Insulator O.D.: 1.12 mm	193 g	101 g
N01	NPT 1/8M5 x 0.8	Case: C3604 + nickel plated, Piping port/pressure sensor: Stainless steel 316L	PSE56 - : Oil proof heavy-duty vinyl cable with air tube, 3 cores, ?5.1, 3 m, Conductor area: 0.2 mm2, Insulator O.D.: 1.12 mm PSE56 - -28: Oil proof heavy-duty vinyl cable with air tube, 2 cores, ?5.1, 3 m, Conductor area: 0.2 mm2, Insulator O.D.: 1.12 mm	194 g	102 g
