SMC HRZ008-W-C thermo chiller, HRZ- THERMO CHILLER

Part Number: HRZ008-W-C

Series Catalog

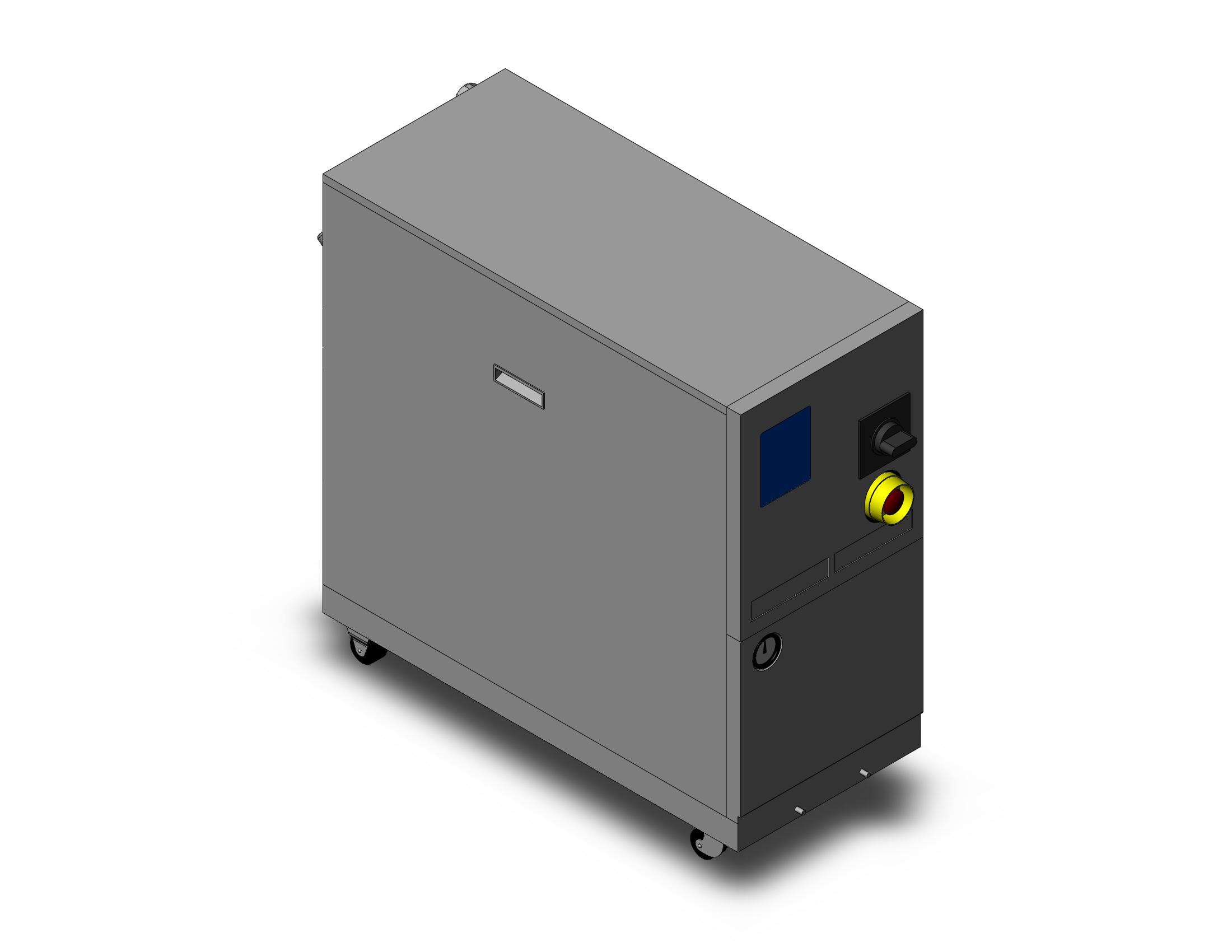

Series image - for reference only
Please pull down this page to review full catalog specifications PDF

Your Price: $23,550.00

Availability:

Available to Ship Today: 0

The item you are trying to purchase is currently out of stock.
Please enter your name, email, and phone number below.
We will contact you as soon as this product is available.

Name: *

Email: *

Phone: *

Verification: *

Type the word above...

Series Catalog

Click Here for Return Policy

THERMO CHILLER

OTHERS

HRZ- THERMO CHILLER

HRZ - NO SIZE RATING

440.00000 lb

Model

Cooling method

Refrigerant

Control system

Ambient temp./humidity Note 1)

Circulating fluid system

Cooling water system

Electrical system

Mass Note 10) (kg)

Safety standards

Circulating fluid Note 2)

Temp. range setting Note 1) (C)

Cooling capacity Note 3) (kW)

Heating capacity Note 3) (kW)

Temp. stability Note 4) (C)

Pump capacity Note 5) (50/60 Hz)(MPa)

Rated flow Note 6) ( l/min)

Main tank capacity Note 7) ( l )

Sub-tank capacity Note 8) ( l )

Port size

Wetted parts material

Temperature range (C)

Pressure range (MPa)

Required flow Note 9) (50/60 Hz) (l /min)

Power supply

Breaker capacity (A)

Rated current (A)

Alarm

Communications

HRZ008-W

Water-cooled refrigeration

R404A (HFC)

PID control

Temperature: 10 to 35C, Humidity: 30 to 70%RH

?20 to 40C: FluorinertTM20 to 90C: FluorinertTMFC-3283/GALDEN?HT135FC-40/GALDEN? HT200

?20 to 90

8.0 (at 20C)

3.3 (at 20C)

?0.1

0.45/0.65 (at 20 l/min)

Approx. 15

Approx. 16

Rc 3/4

Stainless steel, EPDM, Copper brazing (Heat exchanger), PPS, Silicone, Fluororesin

10 to 25

0.3 to 0.7

13/14

Rc 1/2

Stainless steel, EPDM, Copper brazing (Heat exchanger), Silicone, Brass

3-phase 200 VAC 50 Hz, 3-phase 200 to 208 VAC 60 Hz Allowable voltage fluctuation ?10%

Refer to page 94.

Contact input/output (D-sub 25 pin) and Serial RS-485 (D-sub 9 pin) (Refer to pages 92 and 93.)

170

UL, CE marking, SEMI (S2-0703, S8-0701, F47-0200), SEMATECH (S2-93, S8-95)
