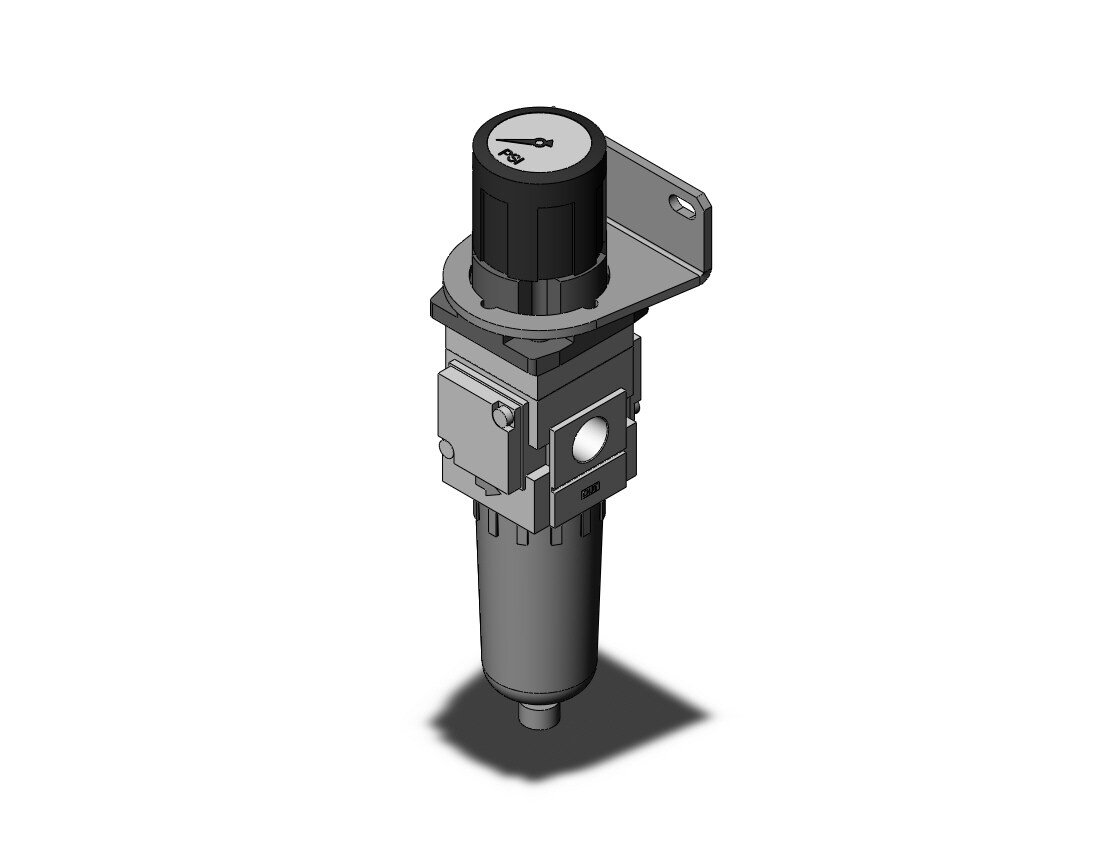

SMC AWG20-N02BCG1-CZ filter regulator w/gauge, AWG MASS PRO

Part Number: AWG20-N02BCG1-CZ

Series Catalog

Series image - for reference only
Please pull down this page to review full catalog specifications PDF

Your Price: $73.35

Availability:

Available to Ship: 0 qty

The item you are trying to purchase is currently out of stock.
Please enter your name, email, and phone number below.
We will contact you as soon as this product is available.

Name: *

Email: *

Phone: *

Verification: *

Type the word above...

Series Catalog

Click Here for Return Policy

FILTER REGULATOR W/GAUGE

AIRLINE EQUIPMENT

AWG MASS PRO

AWG MASS PRO 1/4 MODULAR (NPT)

1.20996 lb

Model

Port size

Fluid

Proof pressure

Maximum operating pressure

Regulating pressure range

Relief pressure

Ambient and fluid temperature

Nominal filtration rating

Drain capacity (cm3)

Bowl material

Bowl guard

Construction

Weight (kg)

AWG20

1/8, 1/4

Air

1.5 MPa

1.0 MPa

0.05 to 0.85 MPa

Set pressure + 0.05 MPa (at relief flow rate of 0.1 l/min (ANR))

?5 to 60C (With no freezing)

5 ?m

Polycarbonate

Optional

Relieving type

0.38
