SMC AW40-06H-A aw mass pro 3/4 modular (pt), AW MASS PRO

Part Number: AW40-06H-A

Series Catalog

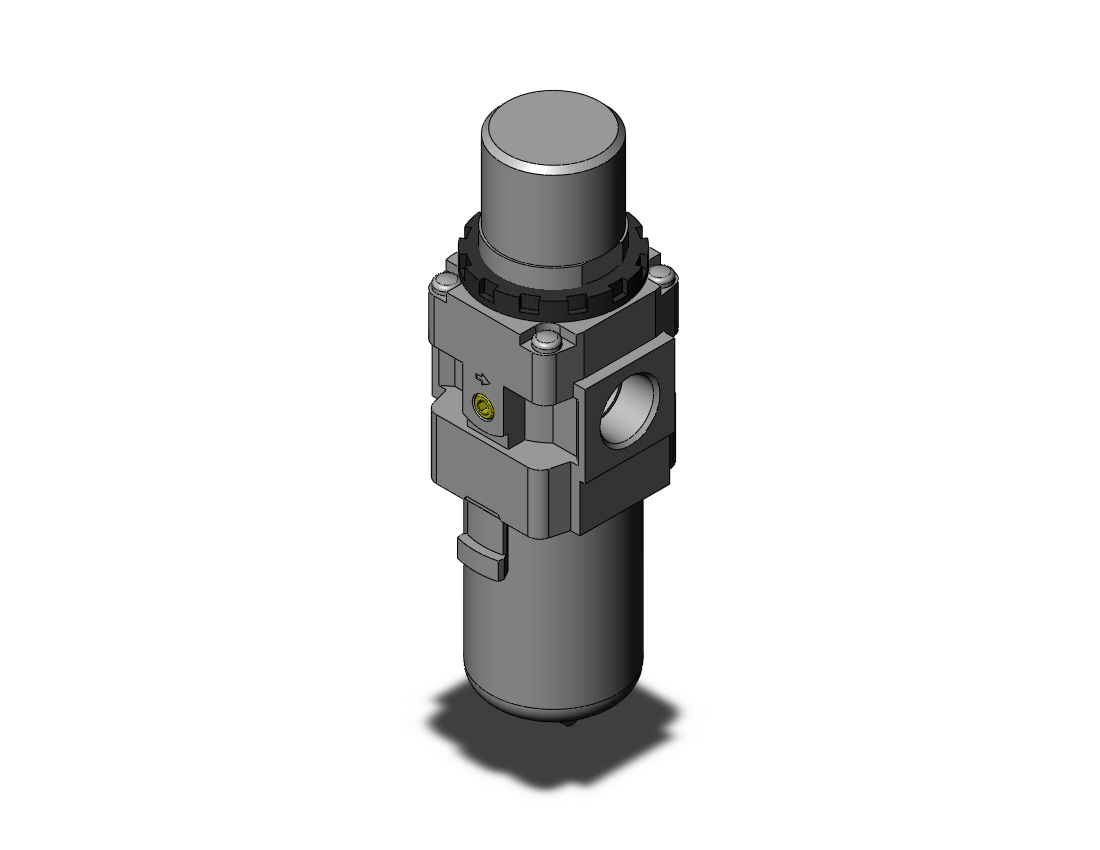

Series image - for reference only
Please pull down this page to review full catalog specifications PDF

Your Price: $87.00

Availability:

Available to Ship in 5 Days: 4 qty

Quantity

Description
tab 10
tab 7
Documents: tab 3
SMC Part Description: tab 4
SMC Products Line: tab 5
SMC Family: tab 1
SMC Family Code: tab 11
SMC Class Description: tab 8
Weight: tab 9
tab 6

Ordering Guide
SMC's series AW, is a combination filter/regulator, minimizing space and piping by integrating 2 units into one. The element and bowl on the AW series is now one-piece, making element replacement easier. Bowls on size 30 and 40 are covered with a transparent bowl guard, completely protecting them from the environment, and making the inside visible from 360 degrees. This series is part of the family of modular air preparation units, and can be combined with other similar sized products. The new AW is available in three body sizes with piping from 1/8 to 3/4 in Rc, NPT or G thread types.

Series Catalog

Click Here for Return Policy

AW MASS PRO 3/4 MODULAR (PT)

AIRLINE EQUIPMENT

AW MASS PRO

AW MASS PRO 3/4 MODULAR (PT)

2.33172 lb

Model

Port size

Pressure gauge port size

Fluid

Ambient and fluid temperature

Proof pressure

Maximum operating pressure

Set pressure range

Nominal filtration rating

Drain capacity (cm3)

Bowl material

Bowl guard

Construction

Weight (kg)

AW40-06-A

3/4

1/8

Air

5 to 60C (with no freezing)

1.5 MPa

1.0 MPa

0.05 to 0.7 MPa

5 ?m

Polycarbonate

Standard (Polycarbonate)

Relieving type

0.81
