Two million pages dedicated to sales and technology information for the SMC Corporation of America
SMC
SMC PRODUCTS
AIRLINE EQUIPMENT
AW MASS PRO
AW40-06BDG-A
SMC AW40-06BDG-A aw mass pro 3/4 modular (pt), AW MASS PRO
Part Number:
AW40-06BDG-A
Series Catalog
Zoom in on Image(s)

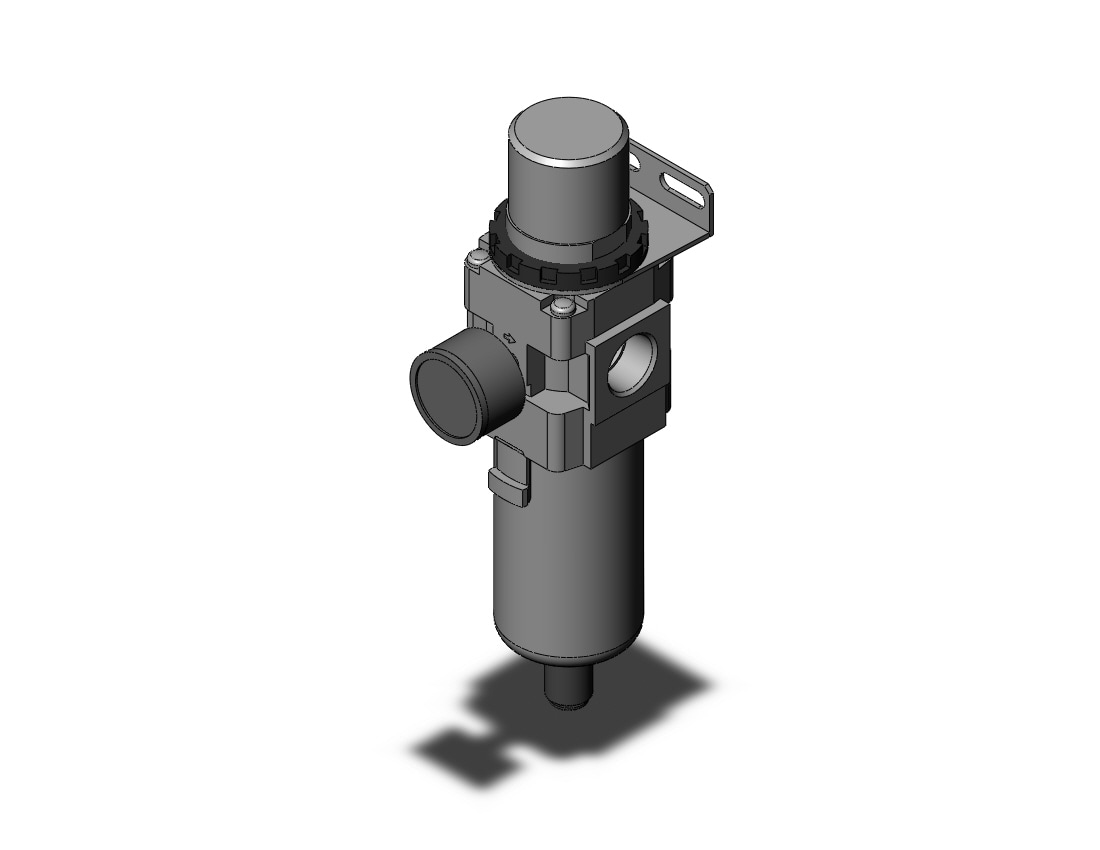

Series image - for reference only
Please pull down this page to review full catalog specifications PDF
Add to Quote
Email Item
Operation Manual
Repair parts for this filter or bowl at the bottom of this page.
Price
Your Price:
$124.15
Availability
Availability:
Available to Ship:
0 qty
AW MASS PRO 3/4 MODULAR (PT)
Put me on the Waiting List
Quantity
+
-
Add to Cart
Submit
product tabs
Description
tab 10
tab 7
Documents:
tab 3
SMC Part Description:
tab 4
SMC Products Line:
tab 5
SMC Family:
tab 1
SMC Family Code:
tab 11
SMC Class Description:
tab 8
Weight:
tab 9
tab 6
Ordering Guide
SMCs series AW, is a combination filter/regulator, minimizing space and piping by integrating 2 units into one. The element and bowl on the AW series is now one-piece, making element replacement easier. Bowls on size 30 and 40 are covered with a transparent bowl guard, completely protecting them from the environment, and making the inside visible from 360 degrees. This series is part of the family of modular air preparation units, and can be combined with other similar sized products. The new AW is available in three body sizes with piping from 1/8 to 3/4 in Rc, NPT or G thread types.
Series Catalog
Click Here for Return Policy
AW MASS PRO 3/4 MODULAR (PT)
AIRLINE EQUIPMENT
AW MASS PRO
GA
AW MASS PRO 3/4 MODULAR (PT)
2.51007 lb
Model
Port size
Pressure gauge port size
Fluid
Ambient and fluid temperature
Proof pressure
Maximum operating pressure
Set pressure range
Nominal filtration rating
Drain capacity (cm3)
Bowl material
Bowl guard
Construction
Weight (kg)
AW40-06-A
3/4
1/8
Air
5 to 60C (with no freezing)
1.5 MPa
1.0 MPa
0.05 to 0.7 MPa
5 ?m
45
Polycarbonate
Standard (Polycarbonate)
Relieving type
0.81
