SMC ACG20D-02G1 reg w/integral pressure gauge, AC MASS PRO

Part Number: ACG20D-02G1

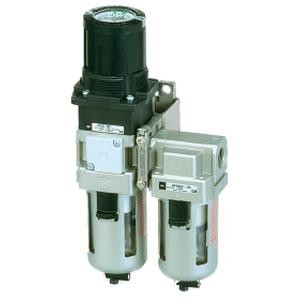

Series image - for reference only
Please pull down this page to review full catalog specifications PDF

Your Price: $89.60

Available to Ship Today: 0

Quantity

REG W/INTEGRAL PRESSURE GAUGE

AIRLINE EQUIPMENT

AC MASS PRO

AC MASS PRO 1/4 MODULAR (PT)

1.55514 lb

Model

Component

Port size

Fluid

Proof pressure

Maximum operating pressure

Regulating pressure range

Rated flow (l/min (ANR))

Relief pressure

Ambient and fluid temperature

Nominal filtration rating

Outlet side oil mist concentration

Regulator construction

Bowl material

Bowl guard

Weight (kg)

Filter regulator

Mist separator

ACG20D

AWG20

AFM20

1/81/4

Air

1.5 MPa

1.0 MPa

0.05 to 0.85 MPa

150

Set pressure + 0.05 MPa (at relief flow rate of 0.1 l/min (ANR))

?5 to 60C (With no freezing)

AF: 5 ?m; AFM: 0.3 ?m (95% filtered particle size)

Maximum 1.0 mg/Nm3 (approx. 0.8 ppm) (2)

Relieving type

Polycarbonate

Optional

0.63
