AC20A-N02G-Z-A
SMC AC20A-N02G-Z-A ac mass pro 1/4 modular (npt), AC MASS PRO
Part Number:
AC20A-N02G-Z-A
Series Catalog
Zoom in on Image(s)

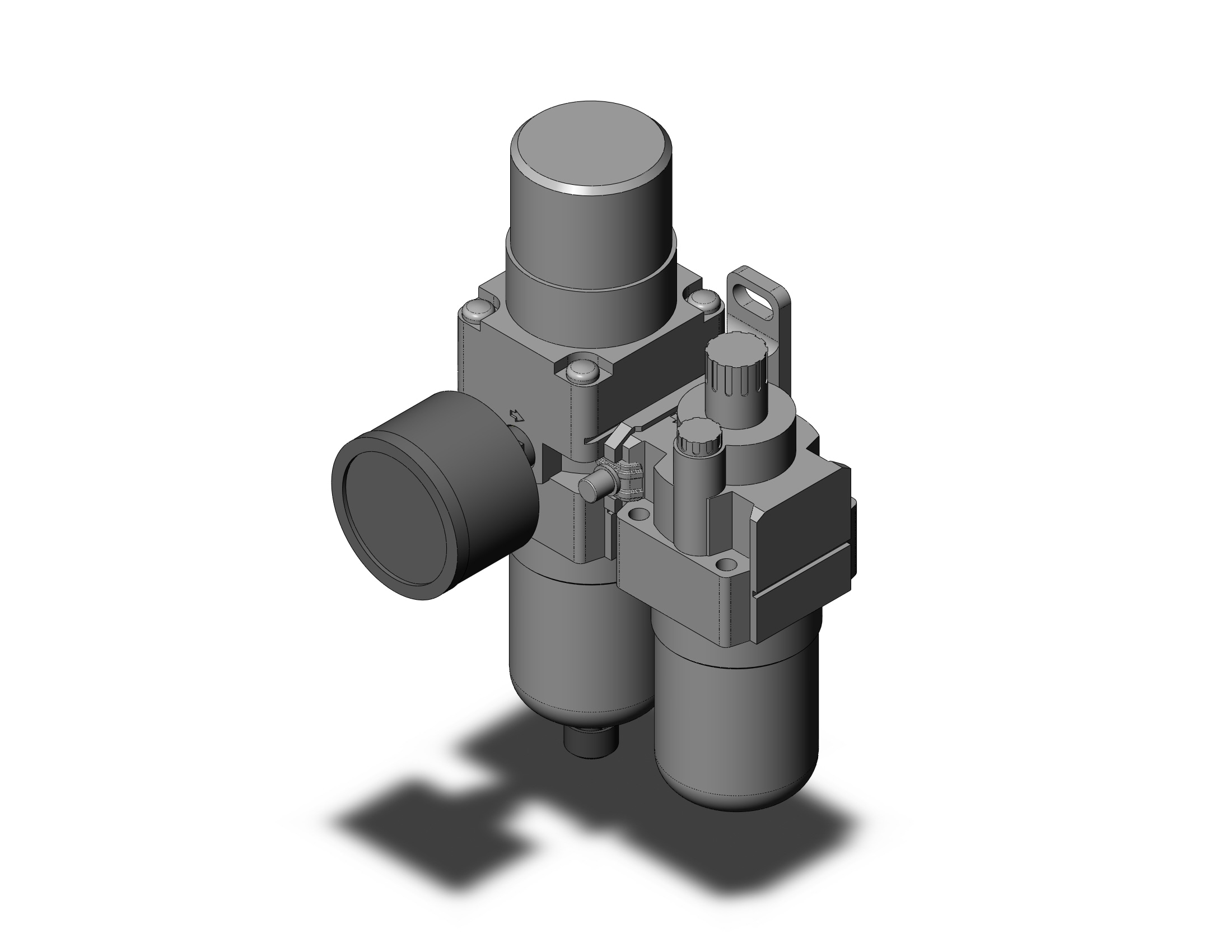

Series image - for reference only
Please pull down this page to review full catalog specifications PDF
Add to Quote
Email Item
Operation Manual
Repair parts for this filter or bowl at the bottom of this page.
Price
Your Price:
$87.40
Availability
This product is obsolete. Please email sales@smcpneumatics.com for the latest version.
Availability:
Available to Ship:
0 qty
AC MASS PRO 1/4 MODULAR (NPT)
Put me on the Waiting List
product tabs
Description
tab 7
Documents:
tab 3
SMC Part Description:
tab 4
SMC Products Line:
tab 5
SMC Family:
tab 1
SMC Family Code:
tab 11
SMC Class Description:
tab 8
Weight:
tab 9
tab 6
This is a legacy product, and replaced by
AC20A-N02G-Z-D
Series Catalog
Click Here for Return Policy
AC MASS PRO 1/4 MODULAR (NPT)
AIRLINE EQUIPMENT
AC MASS PRO
DC
AC MASS PRO 1/4 MODULAR (NPT)
1.41095 lb
Model
Component
Port size
Pressure gauge port size
Fluid
Ambient and fluid temperature
Proof pressure
Maximum operating pressure
Set pressure range
Nominal filtration rating
Recommended lubricant
Bowl material
Bowl guard
Regulator construction
Weight (kg)
Filter regulator
Lubricator
AC20A-A
AW20-A
AL20-A
1/8, 1/4
1/8
Air
? 5 to 60C (with no freezing)
1.5 MPa
1.0 MPa
0.05 to 0.7 MPa
5 ?m
Class 1 turbine oil (ISO VG32)
Polycarbonate
Semi-standard (Steel)
Relieving type
0.33
