Home > SMC PRODUCTS > ACTUATOR > CXS GUIDED CYLINDER > CXSM20-75

SMC CXSM20-75 cyl, dual rod, CXS GUIDED CYLINDER

SMC
Part Number CXSM20-75
SMC CXSM20-75 cyl, dual rod, CXS GUIDED CYLINDER

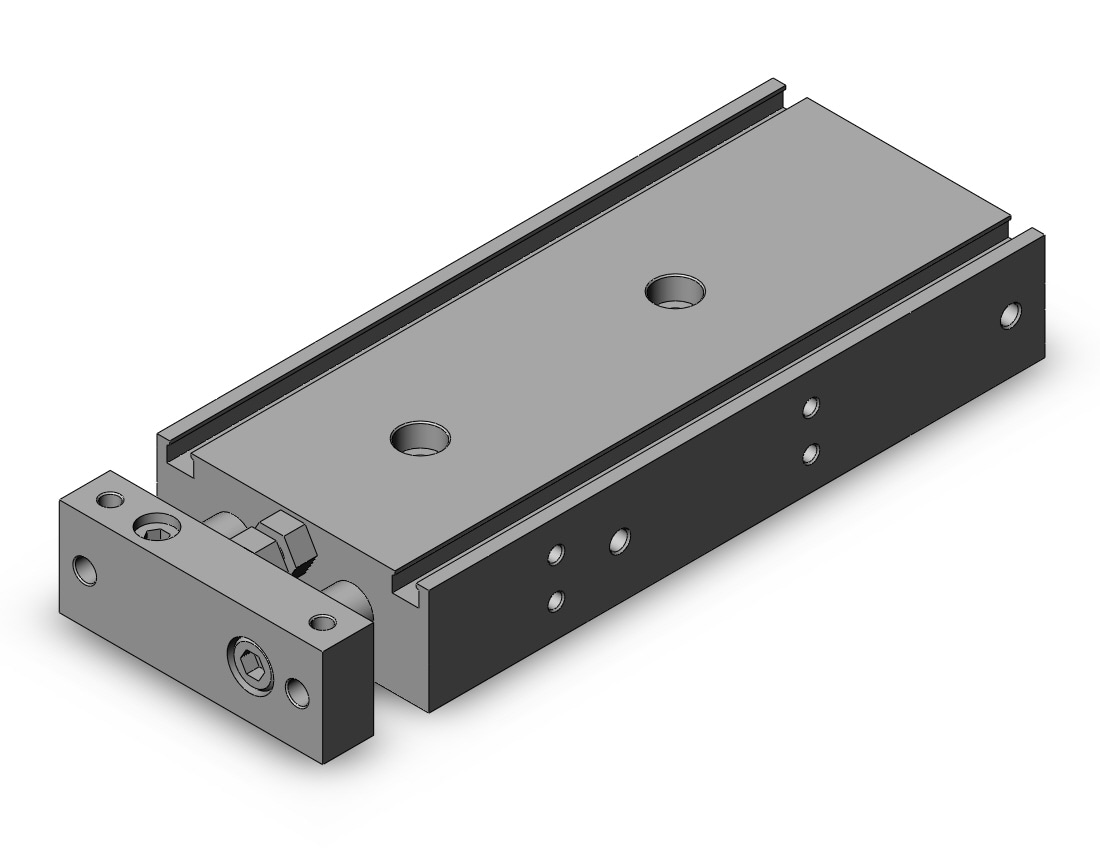

Series image - for reference only
Please pull down this page to review full catalog specifications PDF
OnlineOnly
Price
Your Price:
$115.55
Availability +
Find Similar Items in Stock
Quantity
SIMILAR ITEMS IN STOCK
Email a friend Review this item
Description

Series CXS is available in six bore sizes and stroke lengths up to 100mm. This series is very compact and has a very accurate non-rotating specification. It is suited for accurate pick-and-place applications or light duty material handling. The CXS can be used with either reed or solid state switches. Available in clean room versions.

  • Dual rod cylinder with slide bearing
  • Bore sizes: 6, 10, 15, 20, 25, 32 *
  • Strokes from 10mm through 100mm depending upon bore size
  • Variety of switches and a variety of lead wire lengths



Documents:
Series Catalog

SMC Part Description:
CYL, DUAL ROD

SMC Products Line:
ACTUATOR

SMC Family:
CXS GUIDED CYLINDER

SMC Family Code:
HM

SMC Class Description:
20MM CXS SLIDE BEARING

Weight:
1.52138 lb

SPECS
Actuation: Double Acting
Bearing Type: Slide
Body Style: Dual Rod
Brand/Series: CXS Series
Material, Body: Aluminum Alloy
Mounting Type: Basic
Pressure Range: 0.05 to 0.7
MPa
Size, Bore: 20
mm
Size, Port: M5 × 0.8
Speed, Piston: 30 to 700
mm/Sec.
Stroke: 75
mm
Type: Cylinder
ModelStandard stroke (mm)
1015202530354045506070758090100
CXSM200.400.420.440.460.480.4950.510.530.550.5850.620.640.660.700.74
