Home > SMC PRODUCTS > ACTUATOR > CE1 MISCELLANEOUS SPECIALIZED > CEU1

SMC CEU1 counter (npn), CE1 MISCELLANEOUS SPECIALIZED

SMC
Part Number CEU1
SMC CEU1 counter (npn), CE1 MISCELLANEOUS SPECIALIZED

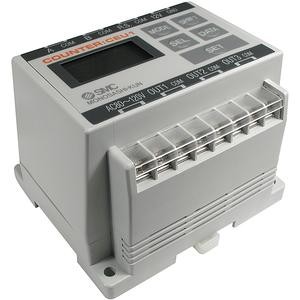

Series image - for reference only
Please pull down this page to review full catalog specifications PDF
OnlineOnly
Price
Your Price:
$431.85
Availability +
Find Similar Items in Stock
Quantity
SIMILAR ITEMS IN STOCK
Email a friend Review this item
Description

The CE1 series is a stroke reading cylinder with position feedback. The home position can be anywhere within the cylinder stroke. Measurement is possible throughout the full stroke range. The CE1 series is offered in 6 bore sizes and is auto switch capable.

  • Output terminal: 3 points
  • DIN rail mountable
  • Hold output, comparison output, one shot output
  • NPN or PNP



Documents:
Series Catalog

SMC Part Description:
COUNTER (NPN)

SMC Products Line:
ACTUATOR

SMC Family:
CE1 MISCELLANEOUS SPECIALIZED

SMC Family Code:
2C

SMC Class Description:
CE1 MISC

Weight:
.90515 lb

ModelTypeMountingOperating systemOperation modesReset systemDisplay systemNumber of digitsMemory holding {Storage medium}Input signal typeCount inputPulse signal systemCounting speedReset inputSensor power supplyOutput signal typePreset output configurationOutput delay timeOutput transistor modePower supply voltagePower consumptionWithstand voltageInsulation resistanceAmbient temperatureAmbient humidityNoise resistanceShock resistanceImpact resistanceWeight
CEU13-point preset counterSurface mounting (DIN rail or Screw stop)Adding - subtracting typeOperating mode, Data setting modeExternal reset terminalLCD (With back light)5 digits display (?9999.9 to 9999.9)Preset data (always held) {E2ROM (Warning display after writing approx. 65,000 times: )}Count input, Reset inputNo-voltage pulse input90 phase difference input20 kHzR.S. and COM terminals are shorted for 10 ms or more (Pulse input)10.8 to 13.2 VDC, 60 mAPreset outputCompare/Hold/One-shot (100 ms fixed pulse)5 ms or lessNPN open collector Max. 30 VDC, 50 mA80 to 120 VAC 50/60 Hz10 VA or lessBetween case and AC line: 1500 VAC for 1 min. Between case and signal ground: 500 VAC for 1 min.Between case and AC line: 500 VDC, 50 M or more0 to 50C (without freezing)35 to 85% RH (No condensation)Square wave noise from a noise simulator (pulse duration 1 ?s) between power supply terminals ?1500 V, I/O line ?600 VEndurance 10 to 55 Hz; Amplitude 0.75 mm; X, Y, Z for 2 hours eachEndurance 10 G; X, Y, Z directions, 3 times each250 g or less
