SMC AQ1510-N01 quick exhaust, AQ QUICK EXHAUST***

Part Number:AQ1510-N01

Series Catalog

SMC AQ1510-N01 quick exhaust, AQ QUICK EXHAUST***

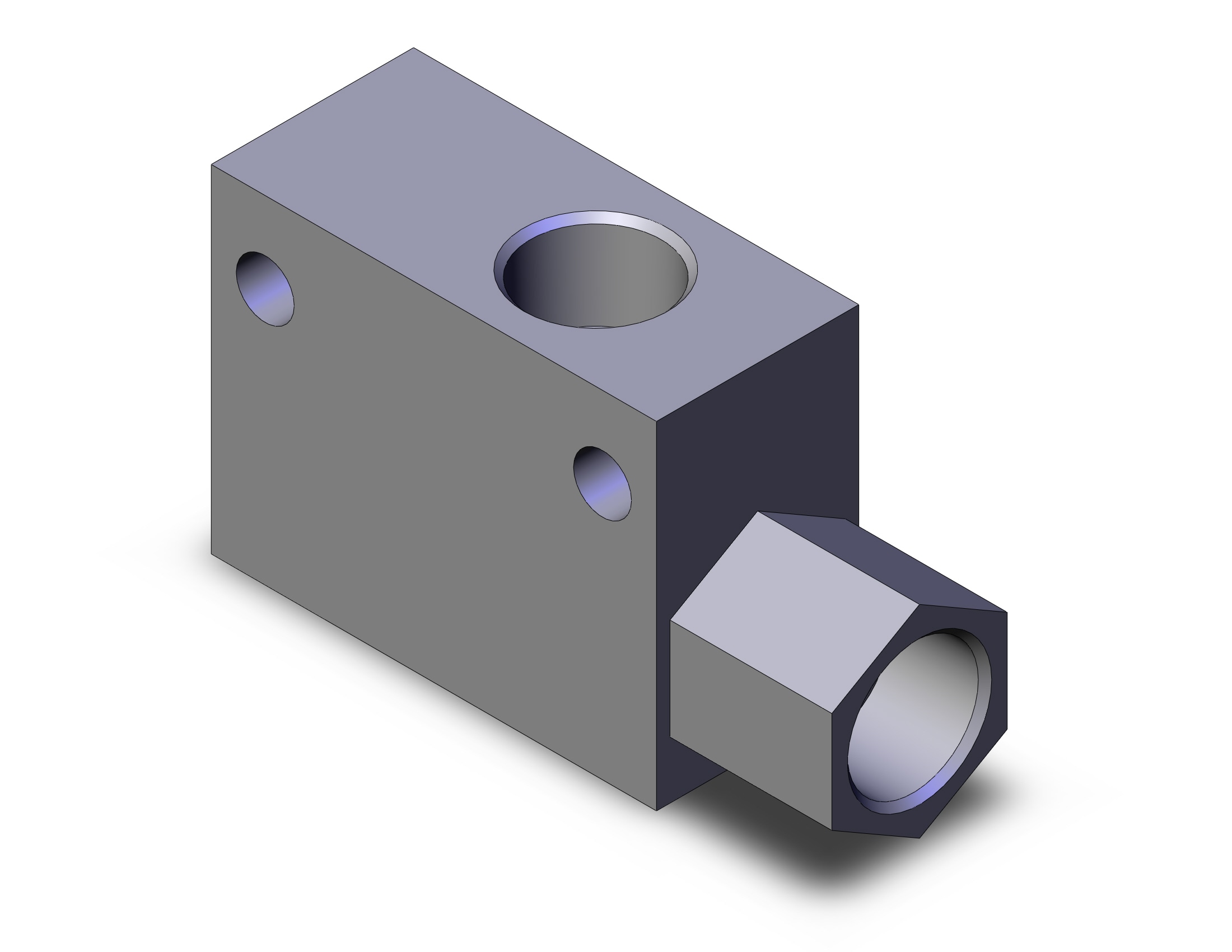

SERIES IMAGE-FOR REFERENCE ONLY

Series image - for reference only
Please pull down this page to review full catalog specifications PDF

Your Price:$15.88

Quantity

Description
Customer Reviews

Documents:

SMC Part Description:

SMC Products Line:

SMC Family:

SMC Family Code:

SMC Class Description:

Weight:

The AQ series quick exhaust valve offers high flow capacity in a compact and lightweight body. The series is available in lip, diaphragm and an inline body shape with built-in one-touch fittings. The AQ is available in a variety of port sizes.

Available in lip or diaphragm type
High flow capacity
Compact and light weight
Low differential pressure
Port size range from M5 to 3/4

Model	Port size	L1	L2	L3	L4	L5	L6	L7	L8	L9	D
AQ1510	1/8	45	33	25	4	21	15	25	8	11	4.3

Model	Port size	Material	Sensor cable	Mass
Model	Port size	Material	Sensor cable	With sensor cable	Without sensor cable
01	R 1/8M5 x 0.8	Case: C3604 + nickel plated, Piping port/pressure sensor: Stainless steel 316L	PSE56 - : Oil proof heavy-duty vinyl cable with air tube, 3 cores, ?5.1, 3 m, Conductor area: 0.2 mm2, Insulator O.D.: 1.12 mm PSE56 - -28: Oil proof heavy-duty vinyl cable with air tube, 2 cores, ?5.1, 3 m, Conductor area: 0.2 mm2, Insulator O.D.: 1.12 mm	193 g	101 g
N01	NPT 1/8M5 x 0.8	Case: C3604 + nickel plated, Piping port/pressure sensor: Stainless steel 316L	PSE56 - : Oil proof heavy-duty vinyl cable with air tube, 3 cores, ?5.1, 3 m, Conductor area: 0.2 mm2, Insulator O.D.: 1.12 mm PSE56 - -28: Oil proof heavy-duty vinyl cable with air tube, 2 cores, ?5.1, 3 m, Conductor area: 0.2 mm2, Insulator O.D.: 1.12 mm	194 g	102 g
